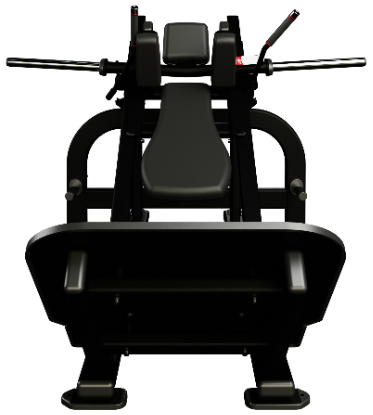

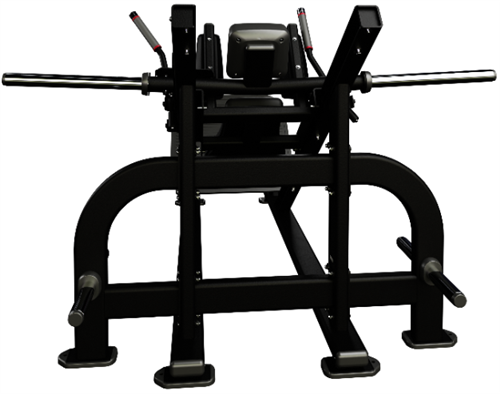

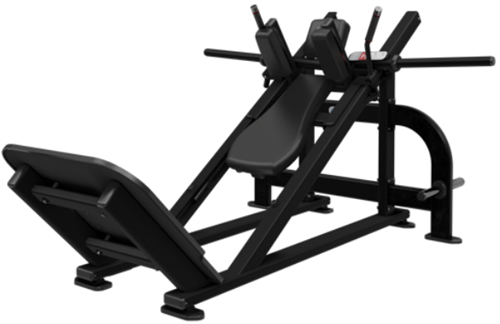

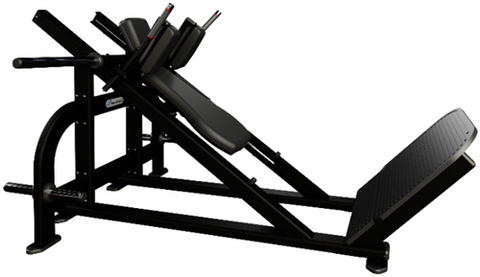

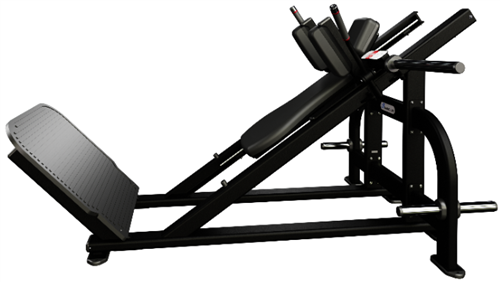

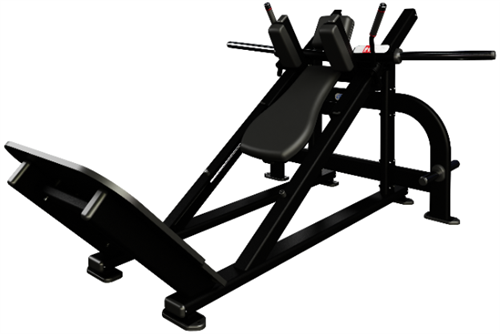

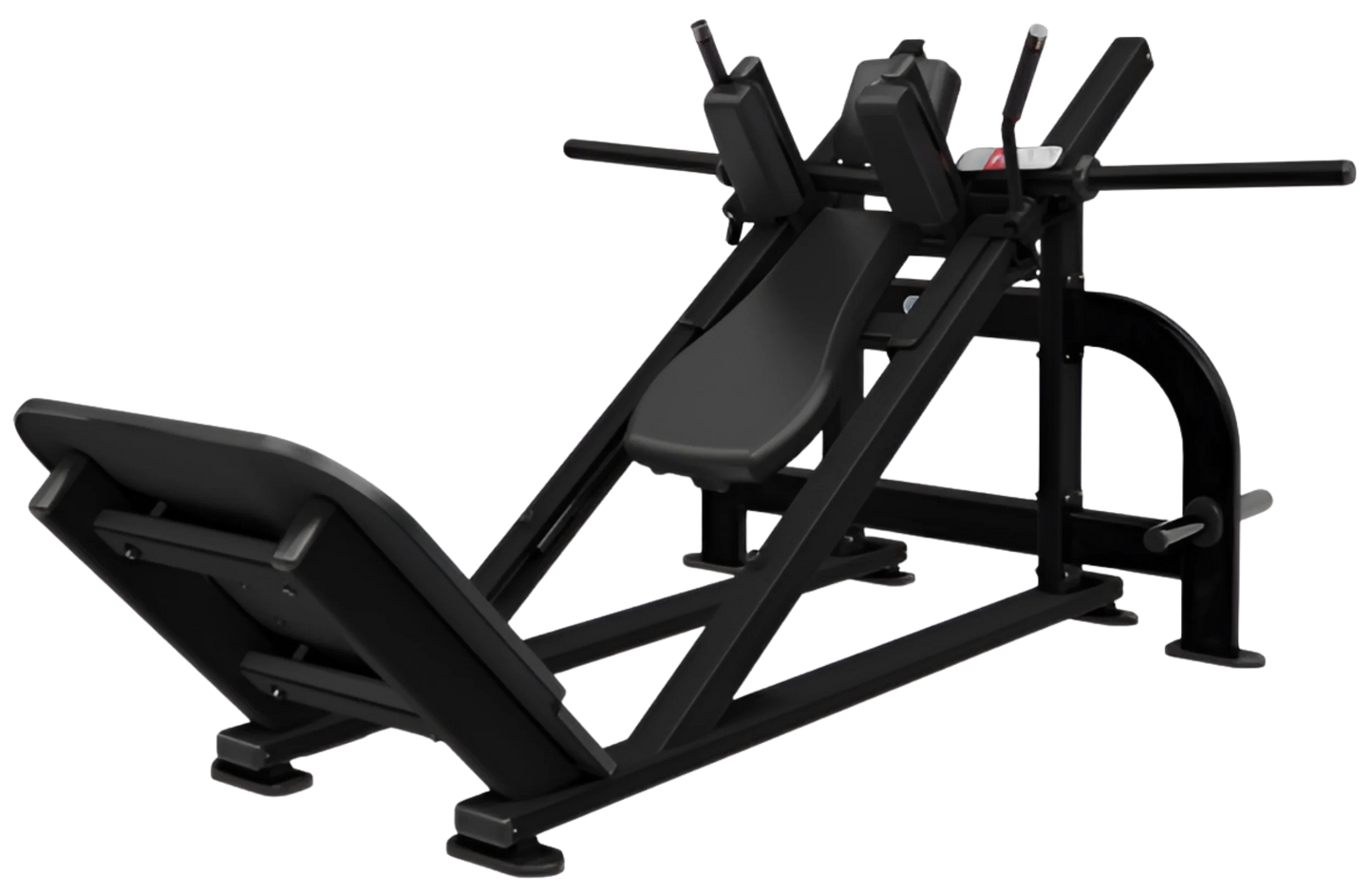

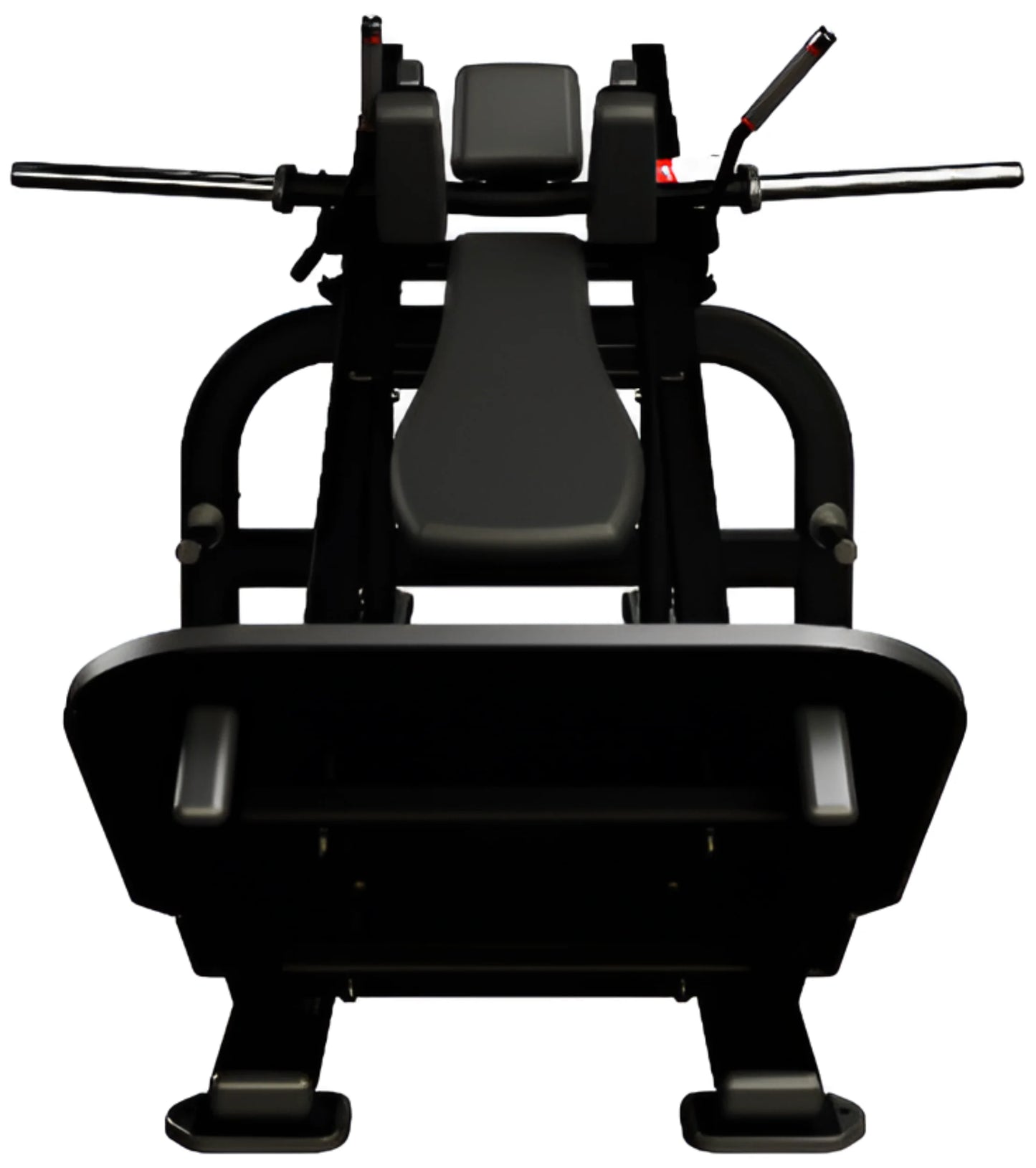

Nautilus Plate Loaded Hack Squat 9NP-L1130-60BZS (New)
Nautilus Plate Loaded Hack Squat 9NP-L1130-60BZS (New)







Nautilus Plate Loaded Hack Squat 9NP-L1130-60BZS (New)
Nautilus Plate Loaded Hack Squat 9NP-L1130-60BZS (New)
Colors
Custom color or code
Choose a color from this guide:
See available colors pdfCustom color or code
Choose a color from this guide:
See available colors pdfTotal with options
$3,999.00






Description
Working out with plates is one of the most effective ways to train, which is why plate loaded machines are a staple for facilities. Whether you are looking to build a full strength circuit or round out your offering with specific pieces, Nautilus Plate Loaded offers the best machines for plate workouts. Each machine is built strong enough to stand up to full commercial use and is designed to make plate workouts as effective, rewarding and safe as possible.
Extra info
Manuals
Photos
Features
- Brand: Nautilus
Designed with all users in mind, the over-sized foot plate allows several different foot positions for safety and workout variety.
- Integrated plate storage
- Two start options for range of motion
- Easy to reach and operate safety stops
- Integrated user handle for safe entry and exit
- 35 degree machine angle
- 80 lb (36 kg) carriage weight
- 900 lb (409 kg) max load capacity
- Integrated Olympic plate storage
- Rubber feet for floor protection
ADJUSTMENTS & MOVEMENTS
- User Defined Range Of Motion: Yes, fixed, linear path of motion with 35 degree machine angle and two start options for range of motion
- Assisted Adjustments: Gravity assisted
- Color Coded Pivot Points And Adjustments: Yes
- Unilateral Or Bilateral Movement: N/A
- Converging Or Diverging Movements: N/A
- Pulley Ratio: N/A
FRAME SPECIFICATIONS & CABLE INFORMATION
- Standard Frame Color Options: Matte Black (-60)
- Standard Upholstery Color Options: Black
- Frame Finish: Electrostatic Powder coating
- Customizable Paint Options Available: Yes with additional fees and extended lead times
- Customizable Upholstery Options Available: Yes with additional fees and extended lead times
- Customizable Branding Options Available: N/A
- Cable Vs. Belt Driven Transmission: N/A
- Bolt Down Locations Defined: Yes
- Integrated Leveling System: No, rubber feet for floor protection
- Hardware Type: Hex / Button Head
- Tubbing Style & Thickness: Modern blend of square and round tubing. Most are 3 or 2.5mm / 11 ga
USER SPECIFIC INFORMATION
- Static Placards: Yes
- Multi-Language Placards Options Available: Yes
- Animated Lenticular: No
- Safety Catch & Stops: Easy to reach and operate safety stops with an integrated user handle for safe entry and exit
- Water Bottle Holder: No
- Phone Holder: No
- Grip Specifications: Rubber, smaller grips.
- Foot Platform: Oversized angled foot platform to accommodate users of all sizes
- Contoured Pads: No
- Restraint System: N/A
Tech specs
- Dimensions: 93"L x 72"W x 47"H (236cm x 182cm x 119cm)
- Stack Weight: N/A
- Overall Weight: 446 lbs (202 kg)
- Product SKU: 9NP-L1130-60BZS
Weight Stacks
- Total Stack Weight: N/A
- Incremental Weight System: N/A
- Weight Stack Tower Height: N/A
- Plate Loaded: Yes, 80 lb (36 kg) carriage weight
- Weight Storage Solution: Integrated Olympic plate storage
- LNL Technology: N/A
- Add-On Resistance Available: 900 lb (409 kg) max load capacity
- Weight Stack Shroud Specifications: N/A
Shipping Dims & Weight
Box # | GW |
Box 1 of 1 | 604 lbs |
Warranty
- COMMERCIAL (Facilities that charge dues and/or > 8 hours/day usage) Limited 10 year warranty on structural frame not including coatings, 5 years parts on major mechanical components, 6 months on upholstery, 1 year labor.
- LIGHT COMMERCIAL/VERTICAL (Non-dues paying facility and < 8 hours/day usage) Limited 10 year warranty on structural frame not including coatings, 5 years parts on major mechanical components, 6 months on upholstery, 3 years labor.
- CONSUMER (Home setting, equipment used by home occupants only.) Limited 10 year warranty on structural frame not including coatings, 10 years parts on major mechanical components, 6 months on upholstery, 3 years labor.
California Residents see Prop 65 WARNING
