The 4 Series cardio line from Star Trac is the perfect solution for the hospitality and multi-housing markets. With premium full color flat panel displays, quick select adjustment keys, and optional personal viewing screen, the 4TR provides smaller facilities with the look and performance of a full commercial product.
Choose between 4 Series 15" Embedded, 10" Touchscreen & 10" LCD versions of the new OpenHub family of consoles
Star Trac 4-Series Treadmill Assembly Procedure Video
Click to view
Star Trac 4TR Treadmill Product Sheet
Features
BASE FEATURES
- Deck System: Reversible MDF deck with phenolic coating
- Absorption System: Triple cell cushioning system provides maximum shock absorption making the entire deck a sweet spot
- Heart Rate Measurement System: Telemetry and contact HR
- Center Controls Bar: Warm bar with contact HR and Emergency Stop
- Display: Full Color 10" LCD
- User Detect System: Yes, programmable on/off
- Accessories: Bottle holder, pre-wired for PVS entertainment, USB port
- Additional Features: 3.5in rollers
FRAME
- Material: Powder Coated Steel Frame
- Customizable: Paint color options approval required
- Standard Color Options: 60 Black
CONSOLE
- Display: 4 Series 10"
- Display Type: Full Color LCD Display, non-touch
- Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Chinese, Japanese, Polish
- Pre-Programmable Work Outs: Yes, 20+
- Quick Start Options: Yes, single button start options
- Tv Tuner Enabled: No
- Ethernet and Wifi Enabled: No
- Bluetooth Data Tracking/App Connectivity: No
- Bluetooth Headphones: No
- Bluetooth Heart Rate: No
- Apple Gymkit/Samsung Galaxy Watch Connectivity: No
- Runtv Integrated Workout Videos: No
- Integrated Web-Based Apps: No
- Customizable Home Screen: No
- HDMI Streaming: No
- USB: USB port for software updates and device charging; cables not included
- RFID: No
- IPTV/SET Top Box Compatible: No
- ANT+ For Group Display: No
- Personal Fan: Yes, programmable auto start
- Asset Management: Ecofit Optional
- Tablet Holder: Integrated front
- PVS: Optional
- 800/900 MHZ Receiver: No

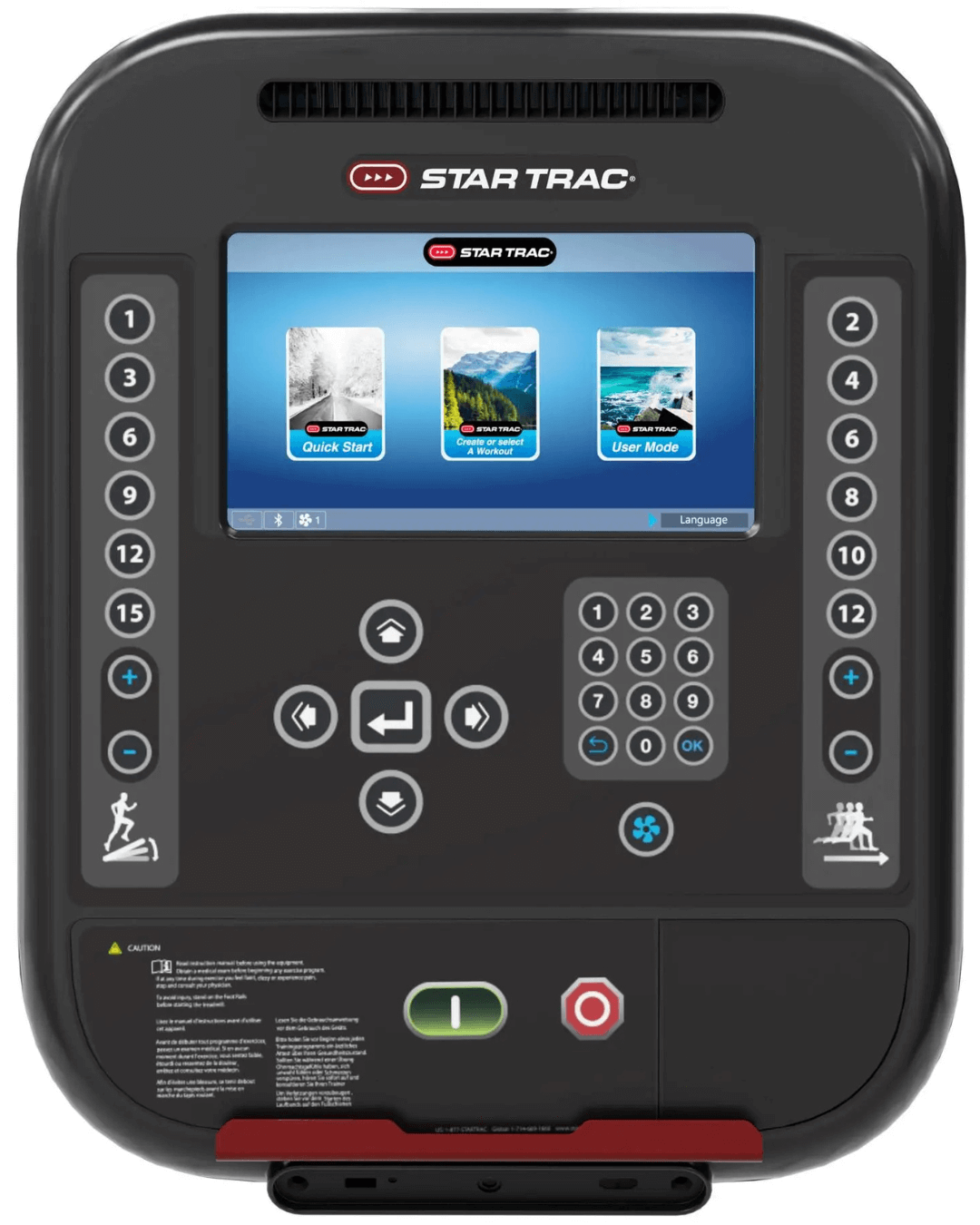

Star Trac 4 Series 10" LCD Cardio Console
The LCD display provides all the functionality you need in a sleek, modern package. With features like a full-color display, quick keys and USB charging, this is the LCD screen that is anything but standard.
- Treadmill includes Quick Keys for one-touch selection of preset speed and elevation settings on the fly
- USB charging port
- Multiple program options
- Pre-wired for ECOFIT asset management solution
- Pre-wired for PVS entertainment option
Tech Specs
- Drive System: 3 HP DC motor
- Electrical Requirements: 110V/15 Amp with standard outlet; or 220V/15 Amp
- Running Belt System: 22" (55cm) wide belt
- Size Of Running Surface: 60" x 22" (152cm x 55cm)
- Step Up Height: 7" (17cm)
- Incline Range: 0-15% max incline
- Speed Range: 0.5-12.5mph (0.5-20kmh)
- Max User Weight: 450lb (205kg)
- Product Weight: 399lbs (181kg)
- Dimensions: 81"L x 32"W x 60"H (L:206cm, W:81cm, H:152cm)
- Shipping Dimensions: 89"L x 36"W x 23"H (L:226cm, W:92cm, H:59cm)
- Shipping Weight: 442lbs (201kg)
- Product SKU: 9-3613-4TR-110-15A-10IN-60BLK
Warranty & Compliance
- COMMERCIAL (Facilities that charge dues and/or > 8 hours/day usage)
- Not intended for commercial use.
LIGHT COMMERCIAL/VERTICAL (Non-dues paying facility and < 8 hours/day usage)
- Limited 10 year warranty on structural frame not including coatings, all other components warranted for 5 years parts and 2 years labor. Wear items* 1 year parts and labor.
CONSUMER (Home setting, equipment used by home occupants only.)
- Limited 10 year warranty on structural frame not including coatings, motor & MCB 5 years parts and labor, all other components warranted for 10 years parts and 3 years labor. Wear items* 1 year parts and labor.
