Description

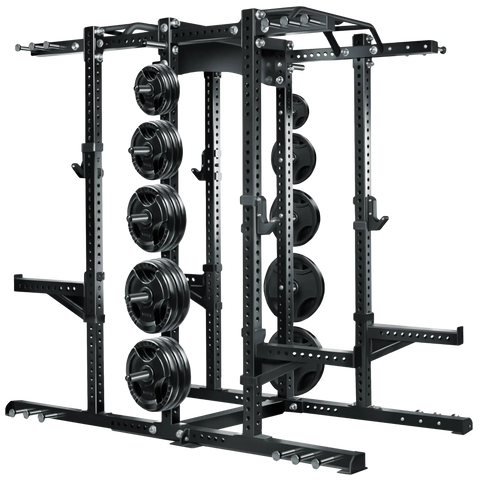

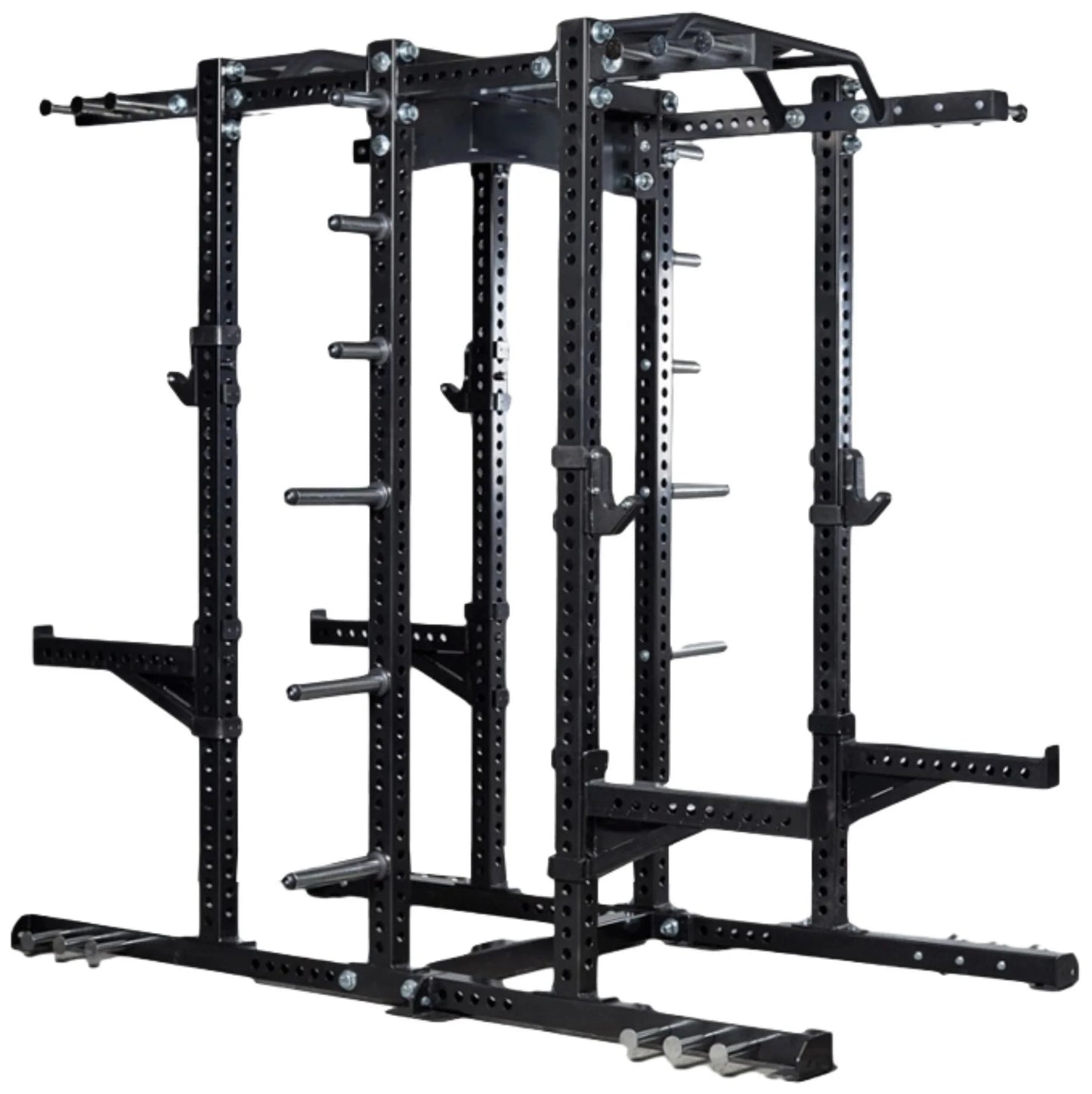

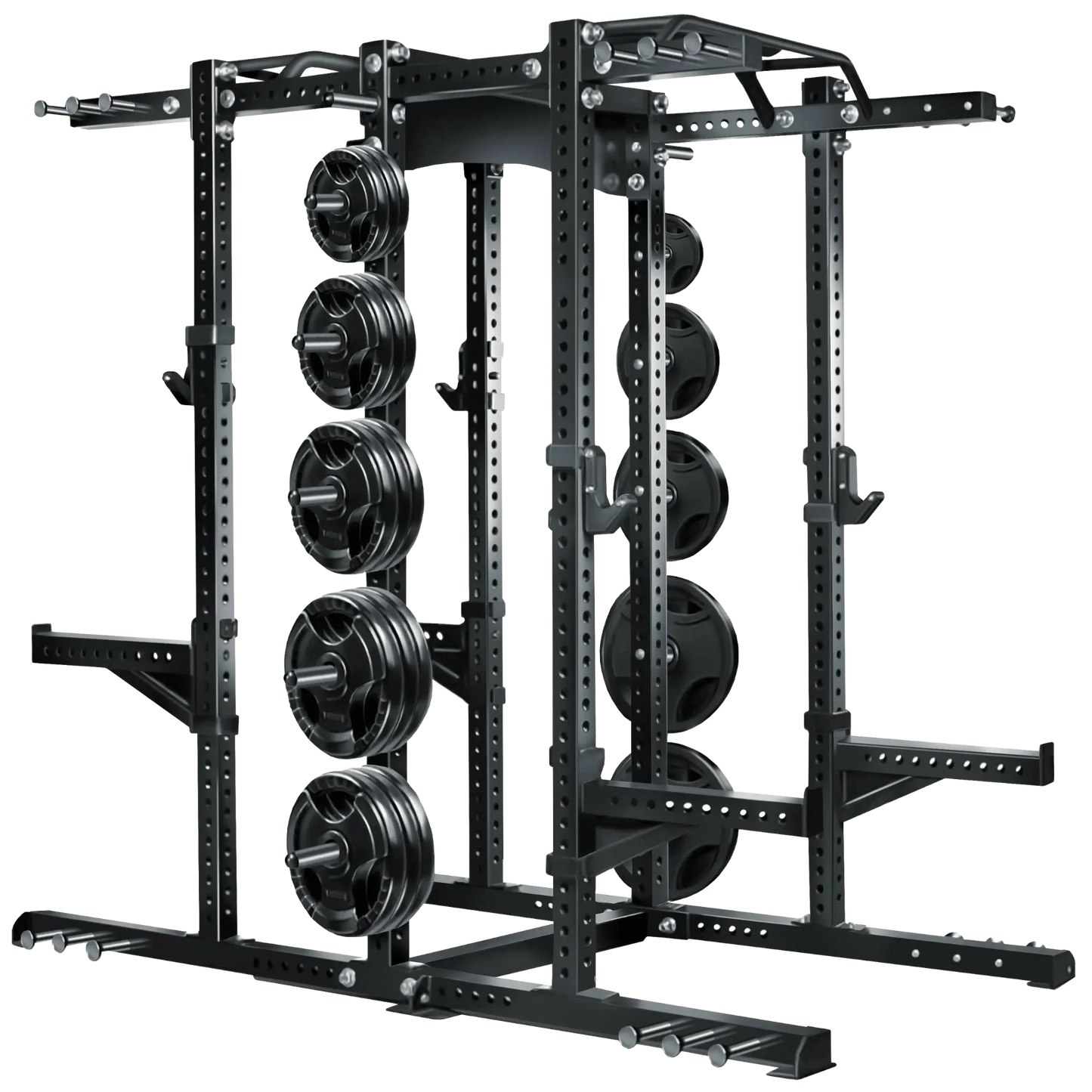

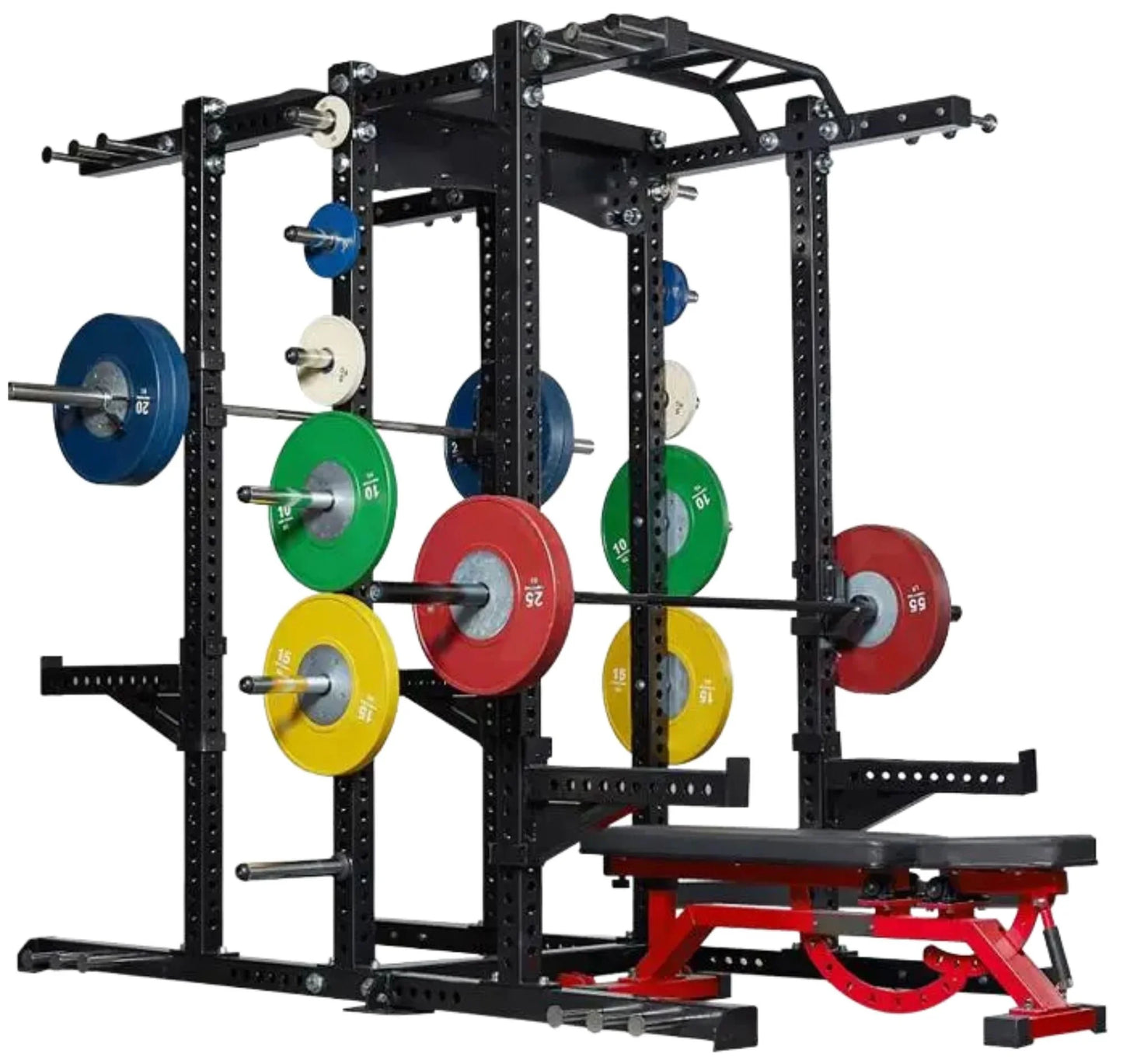

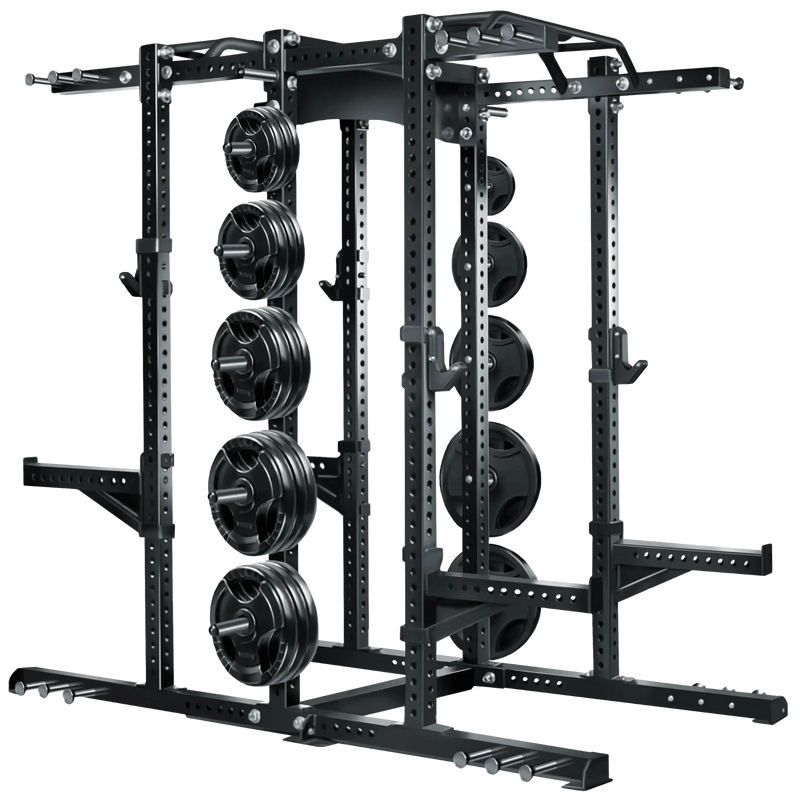

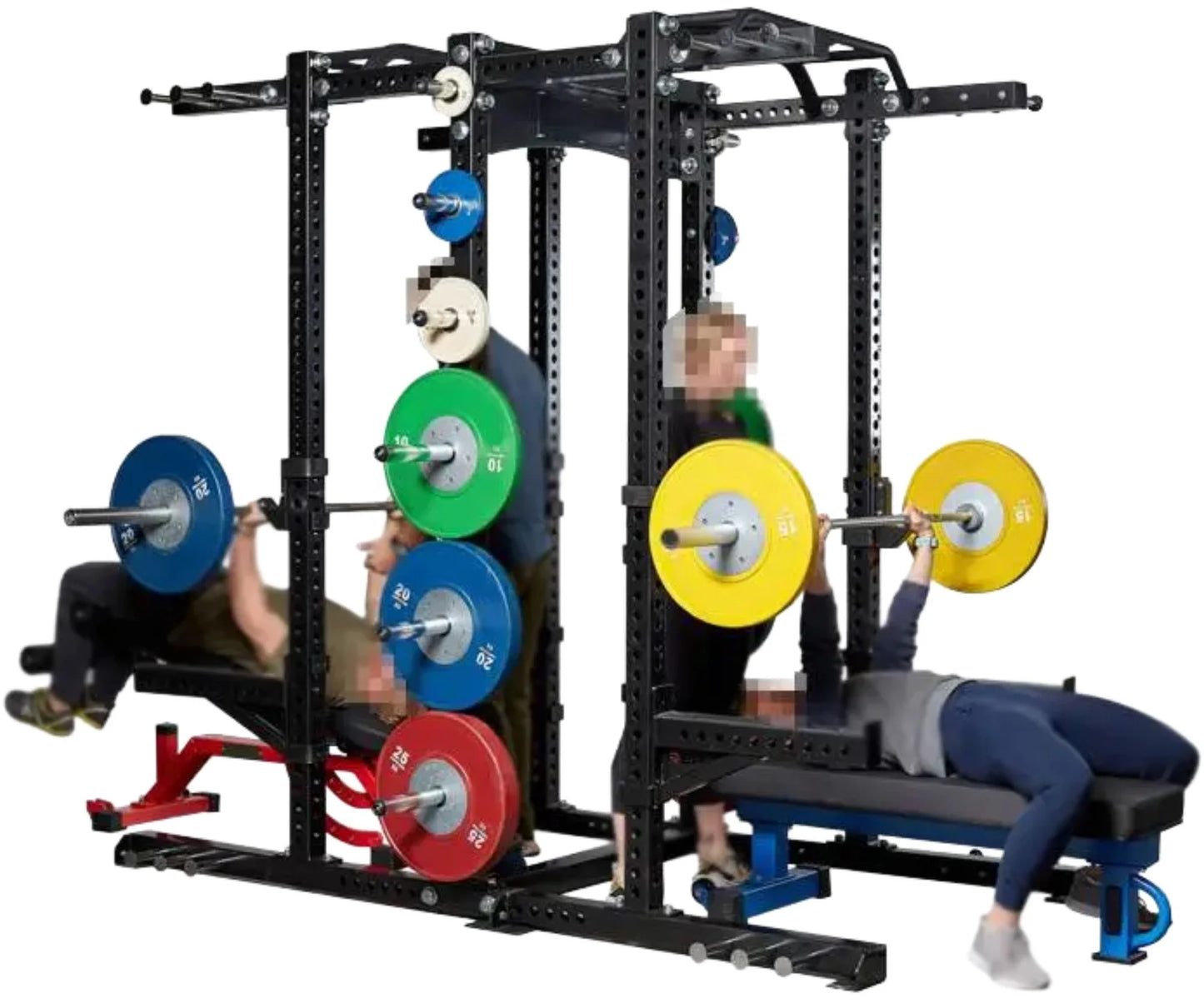

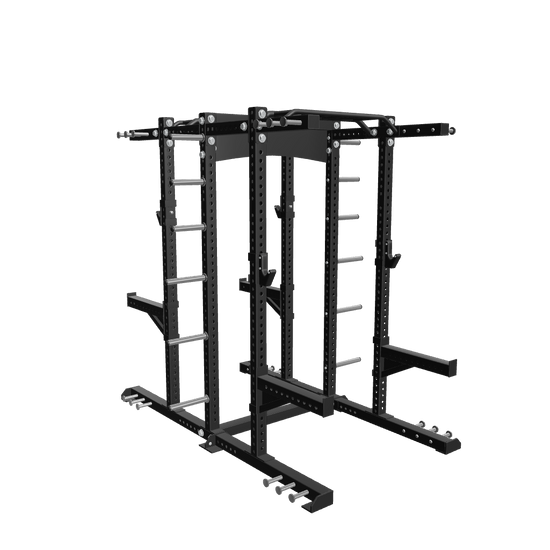

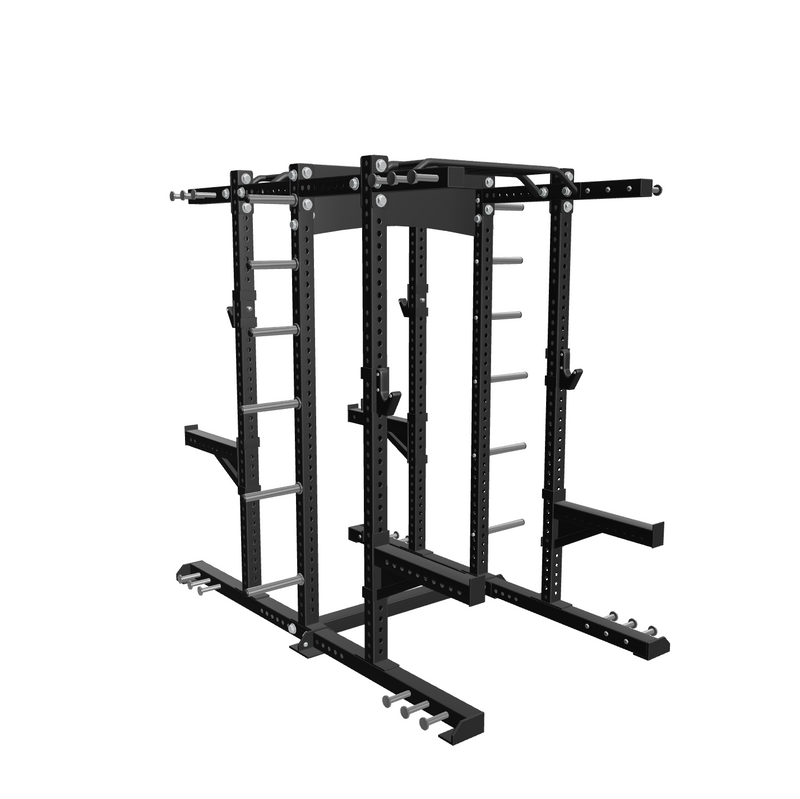

The French Fitness DHR80 Double Half Rack / Cage is a heavy duty, commercial grade, 11 gauge steel double half rack. The DHR80 provides two lifting stations, two athletes' workout areas, and a range of accessories to customize your training facility's needs, providing more training options and versatility to suit the demands of today's personal trainers, athletes, and coaches. Sturdy steel uprights with laser-cut holes allow for easy safety adjustments. The open-front design allows for easy entry and exit while also allowing freedom of movement. Standard twelve (12) premium weight storage horns eliminate the need for separate weight trees. The textured multi-grip pull-up bars are made of a 2" fat bar that is neutrally angled for multiple gripping positions. These can be positioned arch up or arch down depending on your needs, allowing you to change your grip to target different muscle areas. Quick-adjust UHMW lined sandwich j-cups protect your bars and knurling from damage. Adjustable spotter arms provide an extended safe zone to ensure athlete safety. The DHR80 has a variety of attachment and storage solutions, such as the dip horn, pull-up bar, step-up platform, power band holder, landmine, band pegs, jammer arms, bumper plate rack, dumbbell rack, kettlebell rack, and ball rack, allowing you to build a highly diverse training space.

This is the same machine as the French Fitness SHR80 Single Half Rack / Cage except two stations, no other differences. If you want this machine, but with one station, please click the above link. The 3" x 3" 11 gauge uprights that both the SHR80 includes are compatible with our Rack & Rig Attachments.

Note: Weight plates and Olympic bar not included.

Product Links & More Information

French Fitness DHR80 (Double) & SHR80 (Single) Half Rack Assembly Manual

HD (High Definition) Images

French Fitness DHR80 Double Half Rack / Cage - High Resolution Stock Photos
Actual Photos from Customers of Multi Section DHR80 and Multi Section Custom Rack & Rig

Features

• Steel Tubing: 3" x 3" x 3mm Thickness (75mm x 75mm x 3mm)
• 11 Gauge Steel (Heavy Duty, Commercial Grade)
• Sturdy steel uprights
• Laser cut holes
• Laser cut numbers spaced at 2 hole intervals
• Open-front design
• Number of Band Pegs Included: 24 (Great for adding resistance when lifting)
• Twelve (12) weight horns (6 6-inch and 6 12-inch)
• Two (2) textured multi-grip pull-up bar
• Two (2) pairs of adjustable UHMW lined sandwich j-cups
• Two (2) pairs of adjustable Spotter arms

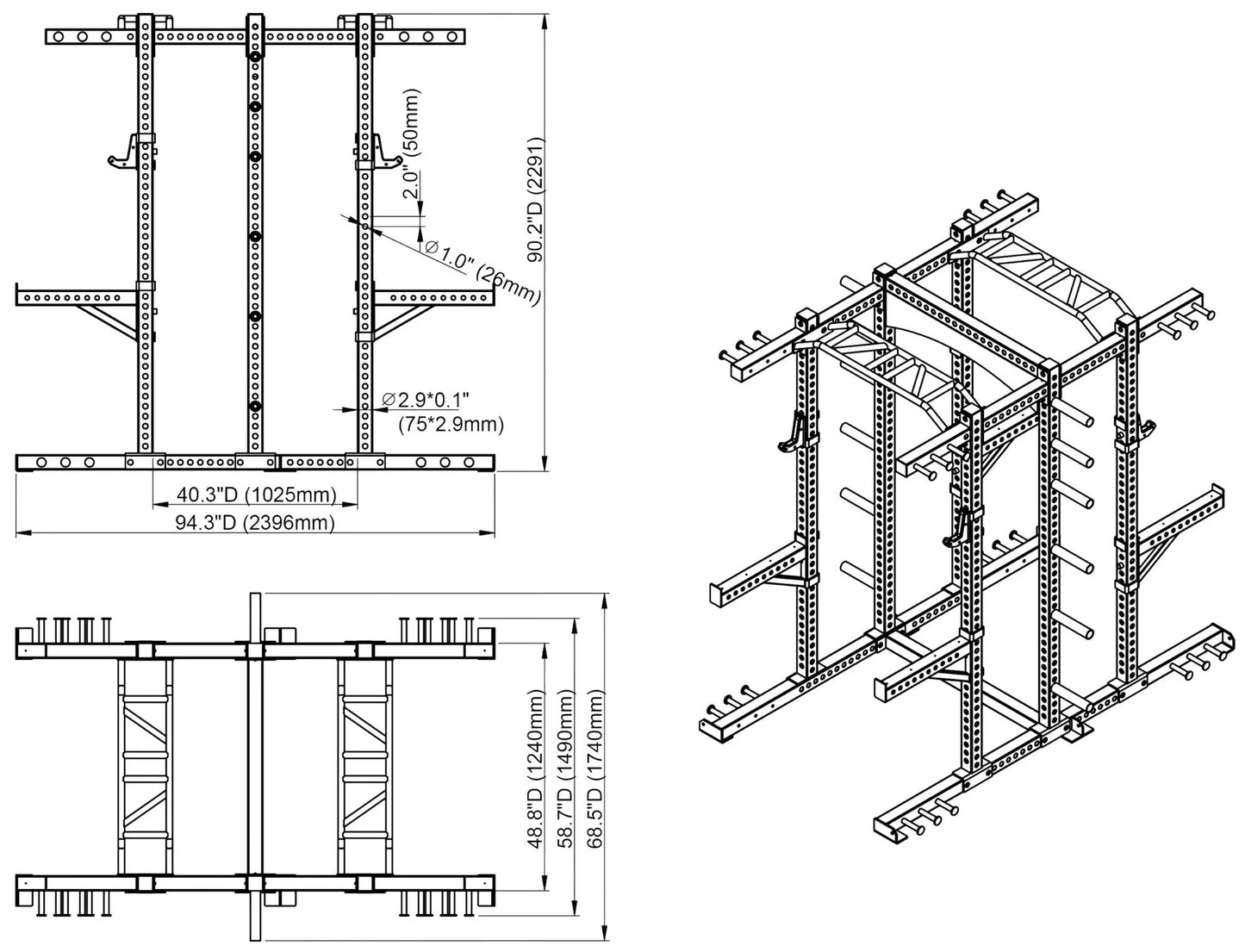

Tech Specs

• Hole Size: 1" (25.4mm)
• Hole Spacing (Center to Center): 2" (50.8mm)
• Outer Frame Width: 48.8"W (1240 mm)
• Width at Band Pegs: 58.7" W(1490 mm)
• Half Rack (SHR80) Depth: 56"
• Half Rack Extension Depth: 44"
• Dual Half Rack (DHR80) Depth: 100"
• Dimensions: 100"D (2540 mm) x 68.5"W (1740 mm) x 98"H (93"H if Pull Up Bar Installed Upside Down)
• You can reduce the height to 93" by removing the (2) Multi Grip Pull Up Bars and replacing it with (2) Straight Bars - see the option above: Choose Machine Height (93 or 98")

Shipping Dims & Weight

Box#	Gross Weight	Net Weight	Dimensions
1 of 10	63.9 lbs	59.5 lbs	91.3" x 7.4" x 6.6" (Ships on a Pallet)
2 of 10	63.9 lbs	59.5 lbs	91.3" x 7.4" x 6.6" (Ships on a Pallet)
3 of 10	61.7 lbs	57.3 lbs	57.8" x 12.2" x 4.7" (Ships on a Pallet)
4 of 10	68.3 lbs	66.1 lbs	29.9" x 17.7" x 7.4" (Ships on a Pallet)
5 of 10	72.7 lbs	68.3 lbs	44.4" x 14.5" x 6.6" (Ships on a Pallet)
6 of 10	83.7 lbs	79.3 lbs	44.4"x 15.3" x 9.4" (Ships on a Pallet)
7 of 10	63.9 lbs	59.5 lbs	91.3" x 7.4" x 6.6" (Ships on a Pallet)
8 of 10	52.9 lbs	48.5 lbs	44.4" x 12.2" x 4.7" (Ships on a Pallet)
9 of 10	66.1 lbs	61.7 lbs	44.4" x 15.3" x 9.4" (Ships on a Pallet)
10 of 10	48.5 lbs	44 lbs	29.9" x 17.7" x 7.4" (Ships on a Pallet)

Warranty & Compliance

• California Residents see Prop 65 WARNING

• 10 Years Parts, 1 Year Labor (Commercial)

Frame Pieces

71" Double Pull Up Bar (Requires 2 racks to fit)

43" Dirty South Bar

71" Dirty South Bar (Requires 2 racks to fit)

Attachments / Add Ons

43" Ball Tier/Tray	71" Ball Tier/Tray (Requires 2 racks to fit)	43" Bumper Plate Tier/Tray	71" Bumper Plate Tier/Tray (Requires 2 racks to fit)
43" Kettlebell Tier/Tray	71" Kettlebell Tier/Tray (Requires 2 racks to fit)	43" Dumbbell Tier/Tray	71" Dumbbell Tier/Tray (Requires 2 racks to fit)
Jammer Arms	Monkey Bar (Requires 2 racks to fit)	Fly Pull Up Bar	Cannonball Grips
Pipe Bomp Grip	Light Bulb	Universal Anchor	Light Bulb Grip
Dip Horn	Step Up Flatform	Bar Holder	Vertical Bar Holder
Wall Ball Target	Double Wall Ball Target	Landmine	Power Band Holder
Ball Holder	Leg Roller	Battle Rope Anchor	Weight Chain Hanger
Lat Pulldown / Low Row	Webbed Catchers	Cable Column	Cable Slinger
A Hanger	GHD
