French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)

French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)

Available to Order
As high as: USD $3,199.00
$2,499.00
$2,499.00
You save $700.00

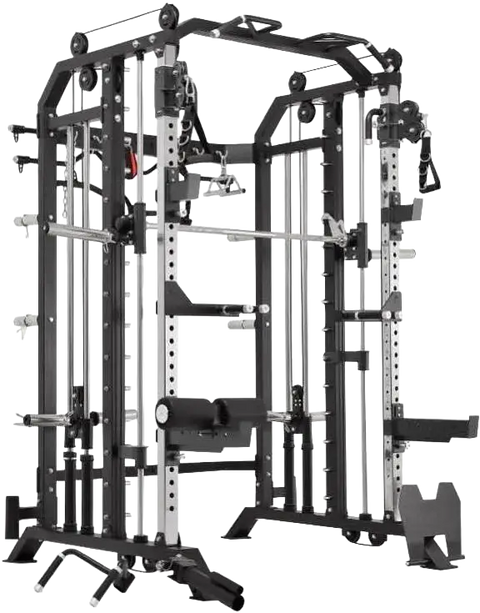

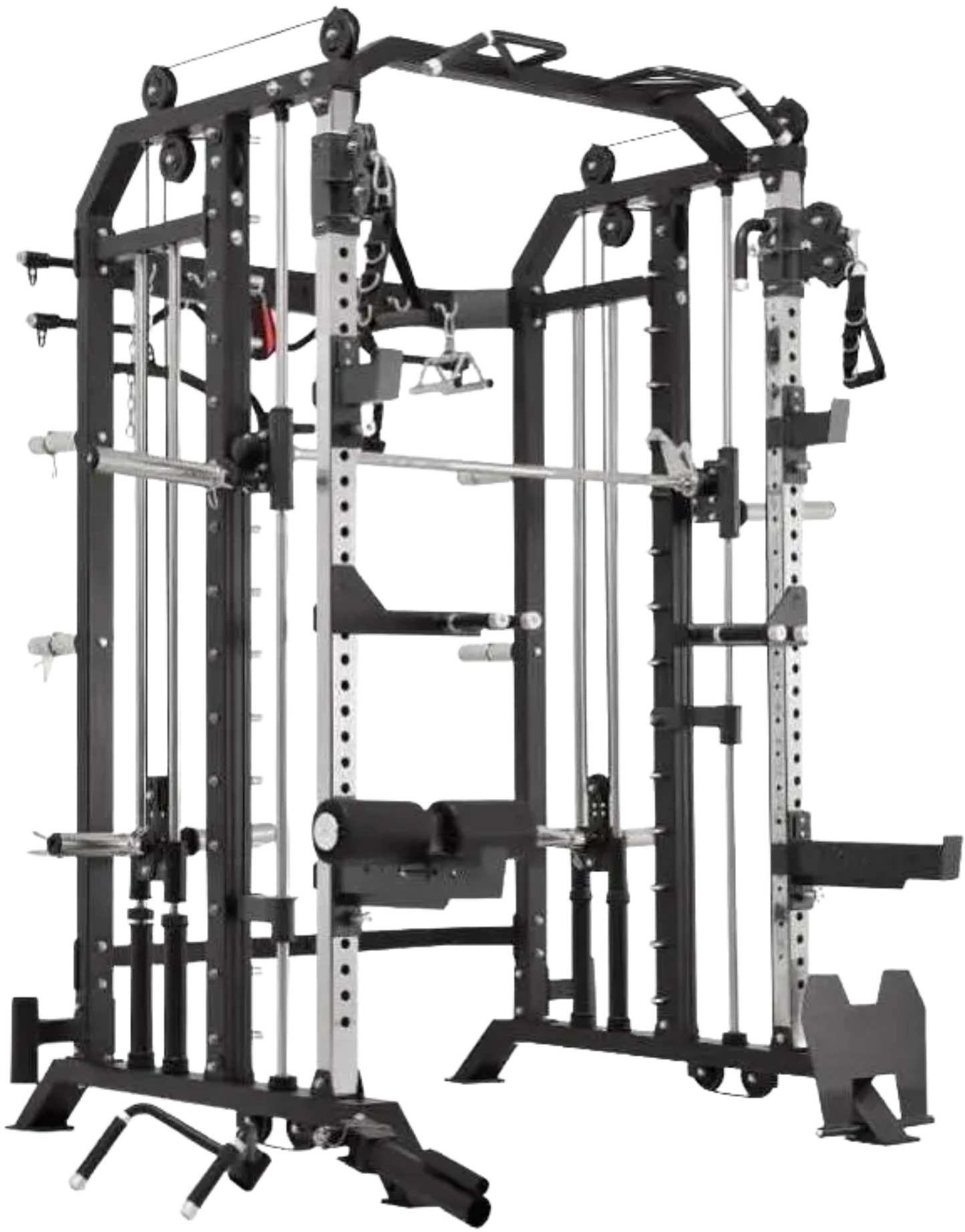

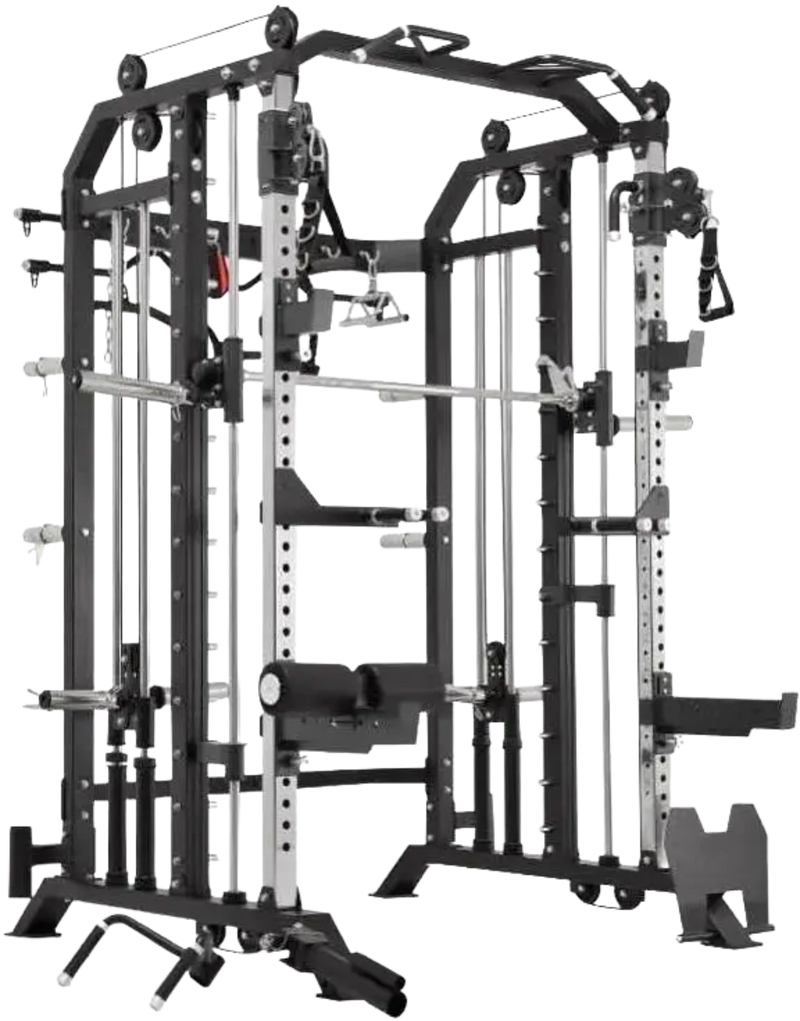

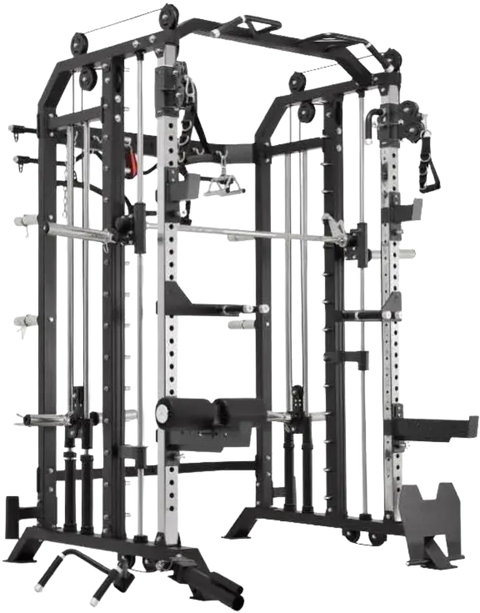

French Fitness FSR20 P/L Multi Functional Gym System Plate Loaded Image
French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)
French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)

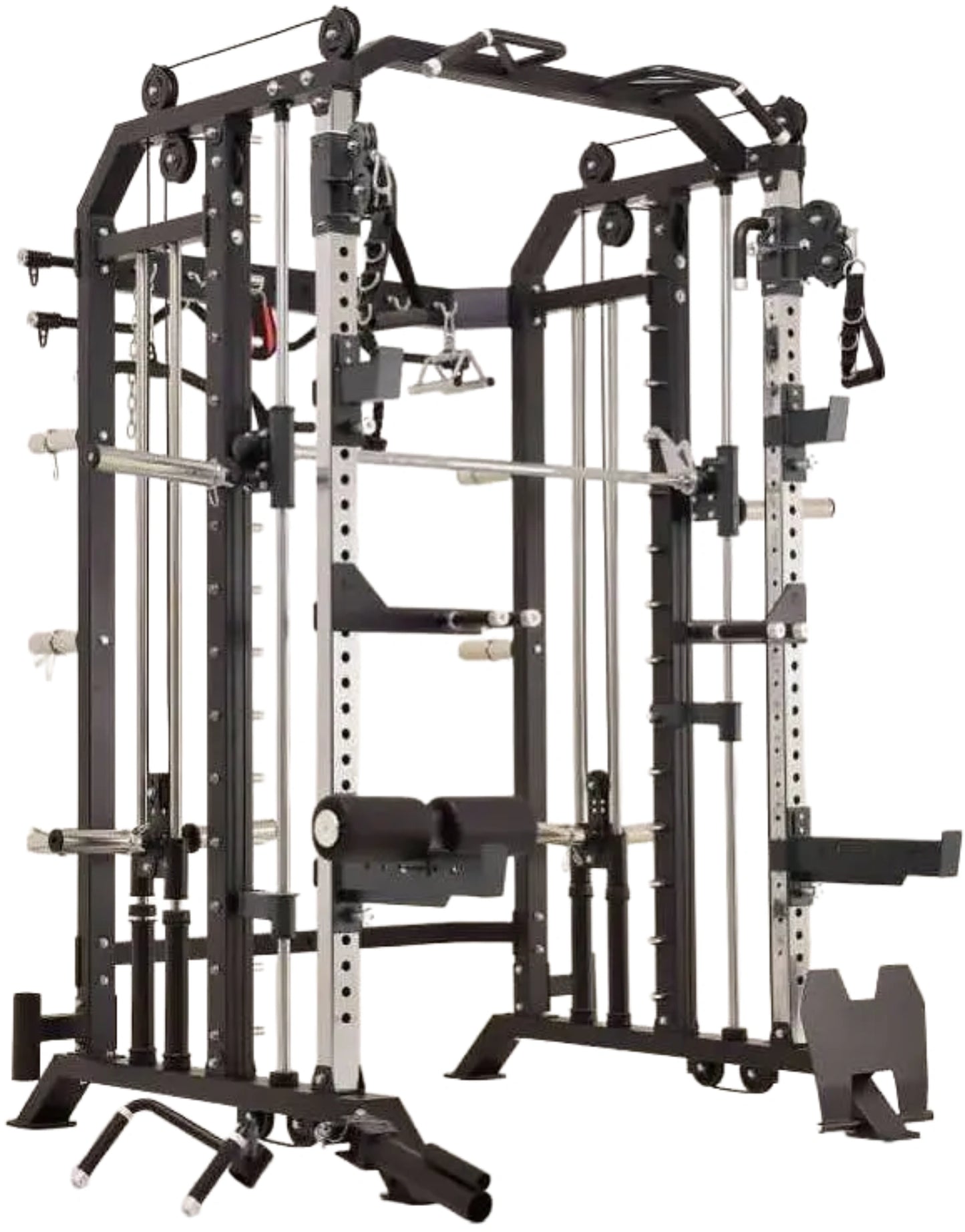

French Fitness FSR20 P/L Multi Functional Gym System Plate Loaded Image
French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)
French Fitness FSR20 Multi Functional Gym System Plate Loaded (New)
Condition: New
Grade: Light Commercial (More Info)
Warranty: 10 Years Parts + 1 Year On-Site Labor (More Info)
Ships: New in Manufacturers Packaging (Assembly Options Available)
Processing Time: Ships from our Warehouse in 1-2 Weeks (More Info)
Product Code: FF-FSR20-PL

Colors

Paint Color
Vinyl Color
Upholstery Color
Total with options

$2,499.00

As low as $XXX / 4 interest-free payment
View full details

Interested in a closer look?

Schedule a video call with us!

Contact us

Description

The French Fitness FSR20 P/L Multi Functional Gym System Plate Loaded provides complete resistance training for all your fitness goals. The Smith Rack has guide rods which eliminate the need for you to balance the barbell and focus purely on the lifting movement. The guide rods has lock-out points up and down the track and a quick twist of the wrist engages these points, locking the barbell in place. This eliminates the need for a spotter, providing weight lifters with more independence.

The Dual Cable Cross different selectable cable positions allow you to perform a variety of exercises. Features a pulley design that allows fluid cable movement for a smoother and safer workout.

Extra info

Manuals

Photos

Instructional video
We have taken a full instructional video, 15 minutes long, of one of our FSR machines, the FSR60. We have demonstrated 92 exercises to show the wide assortment of movement that our FSR machines use. We believe this will be a very useful resource for any FSR system that you decide to buy, to demonstrate the functionality of the system. Most FSR systems have similar attachment options and features.

Comparisons

The Ultimate ALL-IN-ONE Machine:

  • Smith Machine
  • Squat Rack
  • Functional Trainer
  • Landmine
  • Dip Bars
  • Seated Row Foot Rest
  • Pull Up Bar
  • Jammer Arm (Optional)
  • Leg Press (Optional)
  • Lat Pulldown (Optional)
  • Bench (Optional)
  • Preacher Curl (Optional on Bench Attachment)
  • Leg Extension / Leg Curl (Optional on Bench Attachment)

Features

  • Brand: French Fitness
  • 2 Olympic bar holders
  • 10 accessory hooks
  • Olympic bar holder
  • Multiple angle grip
  • Cross-over pulley swivel
  • Adjustable multi-ring strap
  • Knurling chrome plated weightlifting rod for added grip force and prevent rust
  • Squat protection rack
  • Plate Loaded weight stacks on both sides and can be adjusted freely
  • Double pull cable
  • Weight plate storage
  • Multi-hand dip handle
  • Metal cover
  • Solid hard chrome plated guide rod
  • Cable Tensile Strength: 1764 lbs braking force (800 kg)
  • T-bar row landmine can expand a variety of training functions which can be adjusted at will, convenient and free
  • 1" holes on the bars for the j hook

Tech specs

  • Maximum user weight: 350 lbs (159 kg)
  • Storage Horn Capacity: 176.4 lbs (80 kg) each horn
  • Max Load (J Hooks): 555 lbs (251.7 kg)
  • Max Load (Spotter Arms): 555 lbs (251.7 kg)
  • Inner cage 43.5" (110.5 cm)
  • Outer cage width 48.75"(123.8 cm)
  • Outer cage width 78.5" (199.4 cm) with smith bar
  • Depth 57.5" (146 cm)
  • Depth with bar catches 63.5" (161.3 cm)
  • Bar Catches (Length): 17.25" (43.8 cm) from cable column to end
  • Footrest adds 10"- 12" long- 16" wide
  • Product Weight: 529.3 lbs (240 kg)
  • Dimensions: 78.5" W (w/Smith Bar) x 63.5" D (w/Bar Catches) x 90.75" H (199.4 cm x 161.3 cm x 230.5 cm)

Cable Column

  • 2" x 2" Cable Column
  • 2:1 ratio
  • Cable reach 90" (228.6 cm)
  • Hole Diameter: 0.825" (20.95 mm)
  • Pin Diameter sizes accepted: 0.75" to 0.8"
  • Starting Weight (w/o plates): 13.23 lbs (6 kg) each side | 26.46 lbs (12 kg) combined
  • Weight Plate Loading Capacity: 352.7 lbs (160 kg) each side | 705.5 lbs (320 kg) combined

Smith Bar

  • Smith Bar Weight: 22 lbs (10 kg) (Not Counterbalanced)
  • Starting Weight: 40 lbs (18.2 kg)
  • Bar Weight Plate Capacity: 617.3 lbs (280 kg)
  • Weight Pin Diameter: 10mm
  • Weight Pin Length: 86mm
  • Smith Bearing Type: Ball Bearings

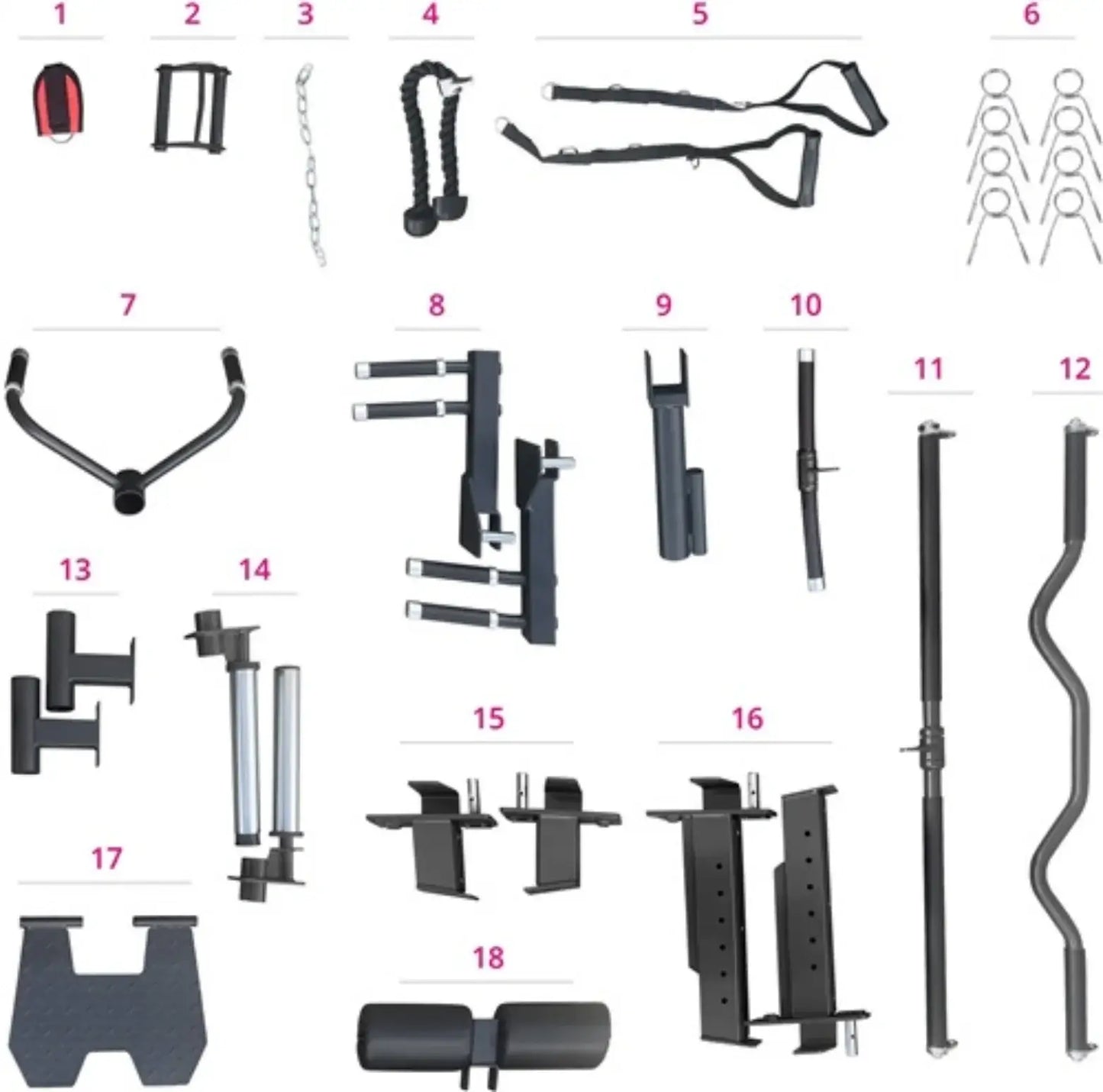

Accessories

Ankle Strap Ankle Strap
Seated Row / Chin Bar Seated Row / Chin Bar
Chain Chain
Tricep Rope Tricep Rope
Adjustable Stirrup Handles Adjustable Stirrup Handles
8 Olympic Spring Collars 8 Olympic Spring Collars
T-Bar Row Handle T-Bar Row Handle
Dip Bars (Pair) Dip Bars (Pair)
Landmine Landmine
18.5 18.5" Revolving Straight Bar
48 48" Revolving Dual Hook Straight Bar
48 48" Revolving Dual Hook Curl Bar
Olympic Bar Holders (Pair) Olympic Bar Holders (Pair)
Smith Bar Weight Horns / Holders (Pair) Smith Bar Weight Horns / Holders (Pair)
J Hooks (Pair) J Hooks (Pair)
Bar Catches (Pair) Bar Catches (Pair)
Seated Row Foot Platform Seated Row Foot Platform
Lat Pulldown Knee Pad Lat Pulldown Knee Pad

Shipping Dims & Weight

Box 1 of 8
Gross Weight: 83.6 lbs
Net Weight: 78 lbs
Dimensions: 81.5" x 12.4" x 3.94"

Box 2 of 8
Gross Weight: 77 lbs
Net Weight: 72.6 lbs
Dimensions: 77.56" x 11.02" x 5.71"

Box 3 of 8
Gross Weight: 100 lbs
Net Weight: 94.6 lbs
Dimensions: 63.39" x 21.26" x 6.69"

Box 4 of 8
Gross Weight: 72.6 lbs
Net Weight: 68.2 lbs
Dimensions: 46.06" x 21.26" x 7.09"

Box 5 of 8
Gross Weight: 81 lbs
Net Weight: 76.6 lbs
Dimensions: 53.94" x 13.78" x 7.68"

Box 6 of 8
Gross Weight: 55 lbs
Net Weight: 52.8 lbs
Dimensions: 22.05" x 20.67" x 7.48"

Box 7 of 8
Gross Weight: 64.9 lbs
Net Weight: 61.6 lbs
Dimensions: 3.62" x 80.71"

Box 8 of 8
Gross Weight: 29.7 lbs
Net Weight: 24.9 lbs
Dimensions: 26.38" x 15.5" x 5.51"

Warranty

  • 10 Years Parts, 1 Year Labor (Light Commercial)
