• Integrated Accessory Tray: Yes
• Pedals: Wide Ride™ Pedals
• Resistance Levels: 26
• Dual Magnetic Resistance Braking System: No
• Easy To Remove Headphone Jack: No
• Front Wheels for easy mobility: No
• Handlebars: XXL Seat Post and Handlebars (optional), Deluxe Racing Handlebars
• Heart Rate Monitoring: Polar® Telemetry (optional chest strap required), Lifepulse™ with DSP (Digital Signal Processing)
• Integrated Reading Rack: Yes
• Multi-Ribbed Belt Drive: No
• On the Fly Programming: Yes
• Pedal Straps: No
• Precision Resistance Braking Lever: No
• Rear Levelers: No
• Robotically Welded Steel Frame with Rust Prevention E-Coating: No
• Step Through Design: No
• Stretching Platform: No
• FOR ALL SE, SE3 and SE3HD standard DTV for live channels via Coax connector available. IPTV and other options must be purchased, installed and configured through Life Fitness technicians themselves.

Service Enhancements

• Flash Programmable with USB: Yes
• Manager Menu Options: Yes

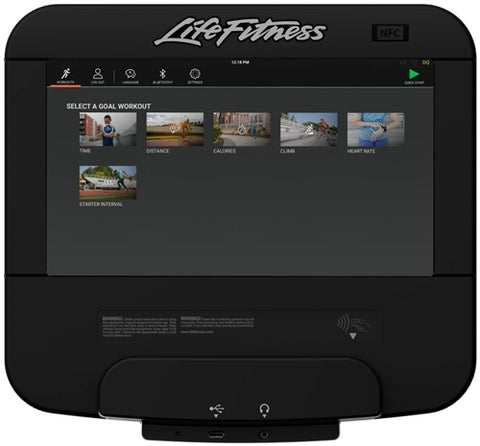

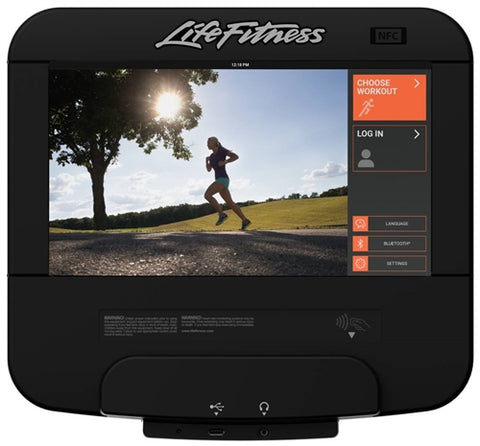

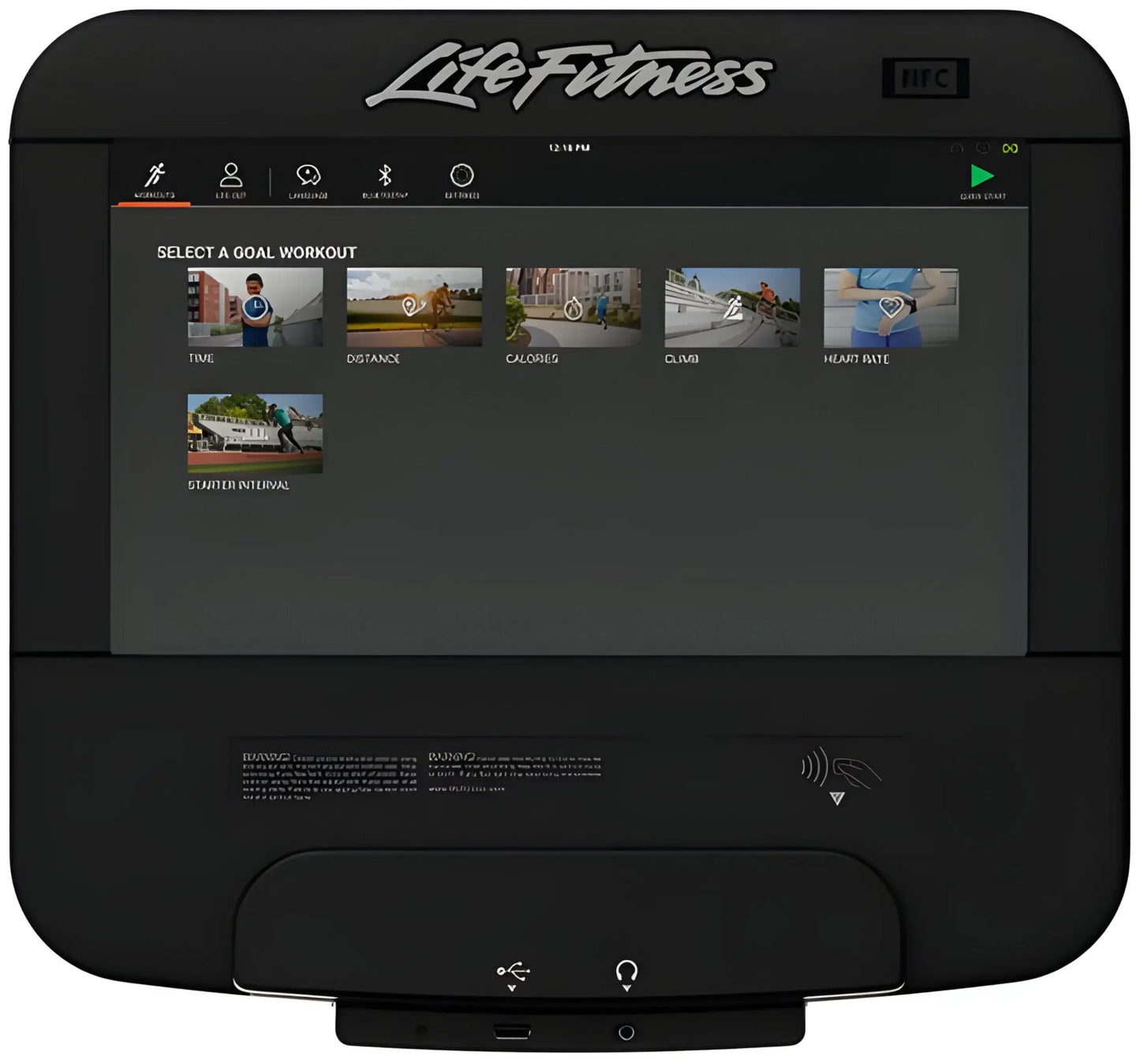

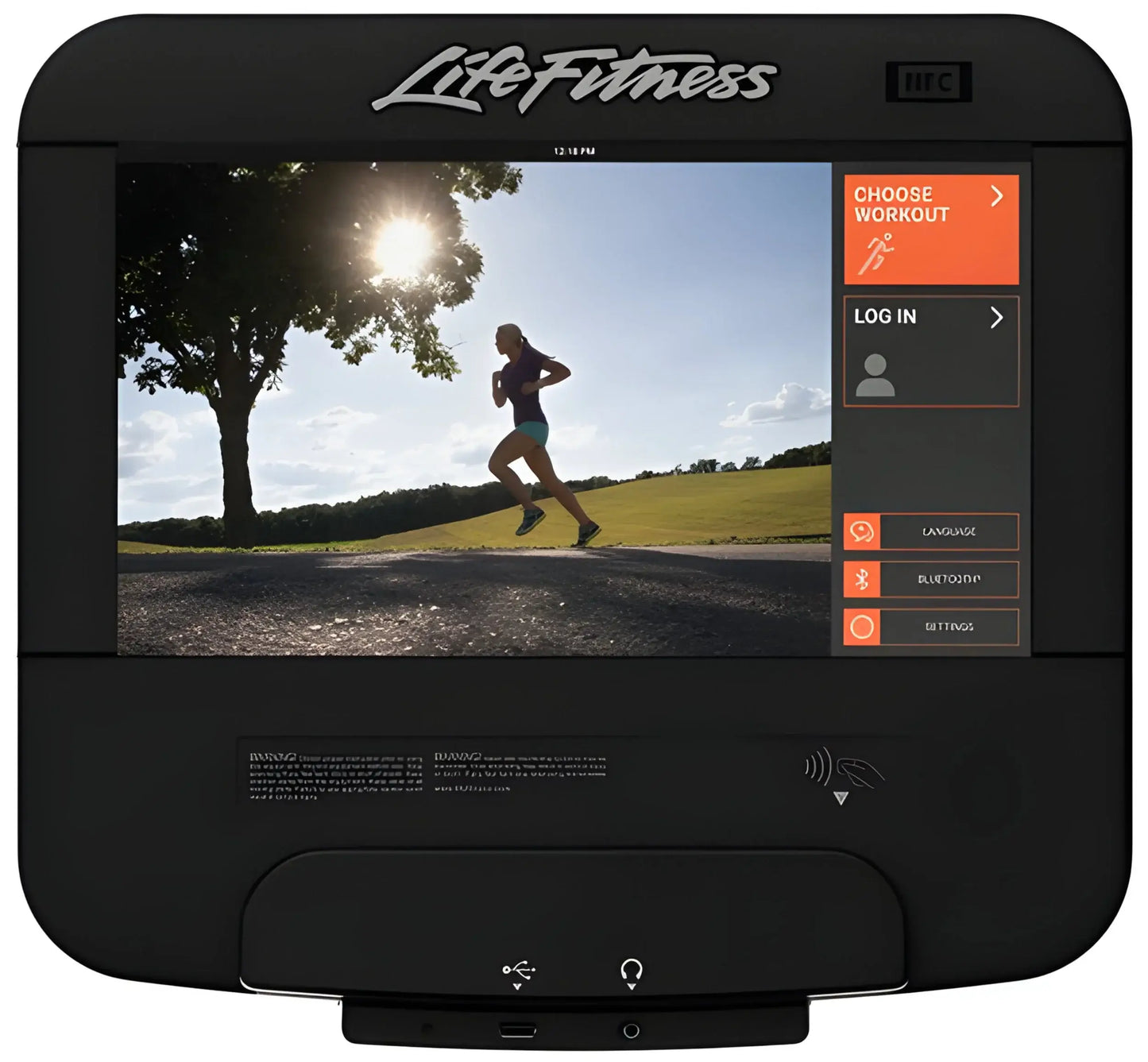

DISCOVER SE3 CONSOLE SPECIFICATIONS

• Console Screen Type: LCD surface capacitive touch screen
• Discover SE3 LCD Touch Screen Size: 16" diagonal (Bikes, Cross-Trainer, FlexStrider, PowerMill, GSC Trainer); 16:9 ratio
• LCD Touch Screen Power Requirement: 20.5 -25.5 VDC @ 3.5 A
• Ports: Type RJ45, interchangeable Network ready connection and Fitness Entertainment port (power compliant with FitLinxx CSAFE specification dated August 4, 2004: 4.75VDC to 10VDC; maximum current of 85mA).
• Headphone Jack: 3.5mm Stereo
• Ambient Temperature Range (Operating): 10C - 40c (nominal 25C)
• Temperature Range (Storage / Shipping): -20C - 60C (key limiting item: LCD Touch Screen)
• Humidity Range (Operating): 5% - 85% RH (nominal 40% RH, non-condensing)
• Heart Rate Monitoring Systems: Patented Lifepulse™ digital contact heart rate and Polar® telemetry-compatible heart rate monitoring system
• Resistance Levels: (Bikes): 26 (0 - 25) (adjustable for bikes)
• USB Device Charging: Can be used in combination with Apple 30-pin, Apple Lightning and Android micro-USB cables to charge compatible devices.
• Broadcast Receiver Capabilities:

1. NTSC/ATSC or PAL/DVB-T/DVB-T2 or NTSC/ISDB-T (three separate tuners).
2. Japan has its own tuner due to conditional access card (B-CAS).
3. NTSC/ATSC supports PAL-M and PAL-N (unique PAL encoding for Argentina, Brazil, Paraguay, and Uruguay where no digital broadcasting is available).
4. PAL/SECAM/DVB-T/DVB-T2 tuner supports PAL, PAL-M, PAL-N, SECAM-B/G, SECAM- D/K and DVB-T/-T2.

• Shipping Dimensions (L x W x H): 7.5 in x 23 in x 19.5 in (190.50 mm x 584 mm x 495 mm)
• Shipping Weight: 20.4 lbs. (9.25 kg)
• Dimensions (L x W x H): 4.53 in x 16.5 in x 15.4 in (115 mm x 419 mm x 390 mm)
• Weight: 13 lbs. (5.89 kg)
