• Dual weight stacks for personalized or group training, as a standard configuration
• User Feels Stack Weight Capacity: 2x 80 LB (2x 36 KG) at each handle through two, independent and enclosed weight stacks.
• Cable drive system, user defined path of motion
• Nine horizontal position options and 12 vertical position adjustment options
• 3:1 ratio with 9.5 FT (289.5 CM) training space and 113 IN (287 CM) cable travel
• Supporting both low and slow resistance and explosive movements
• Integrated ballet bar to assist with stretching and stability
• Standard accessories included: pair of hand grips, ankle strap, and padded bar
• 12 pre-defined exercises with static placards, many more available
• Easy access to guild rods from the front or rear shrouds

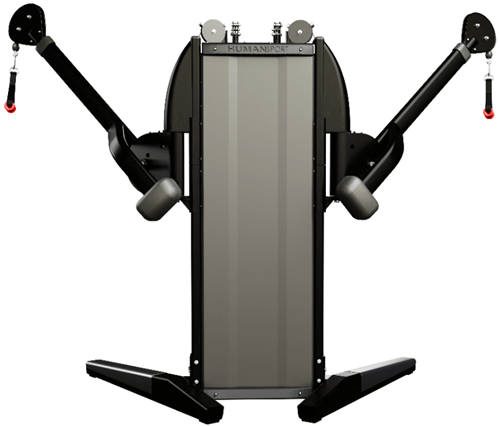

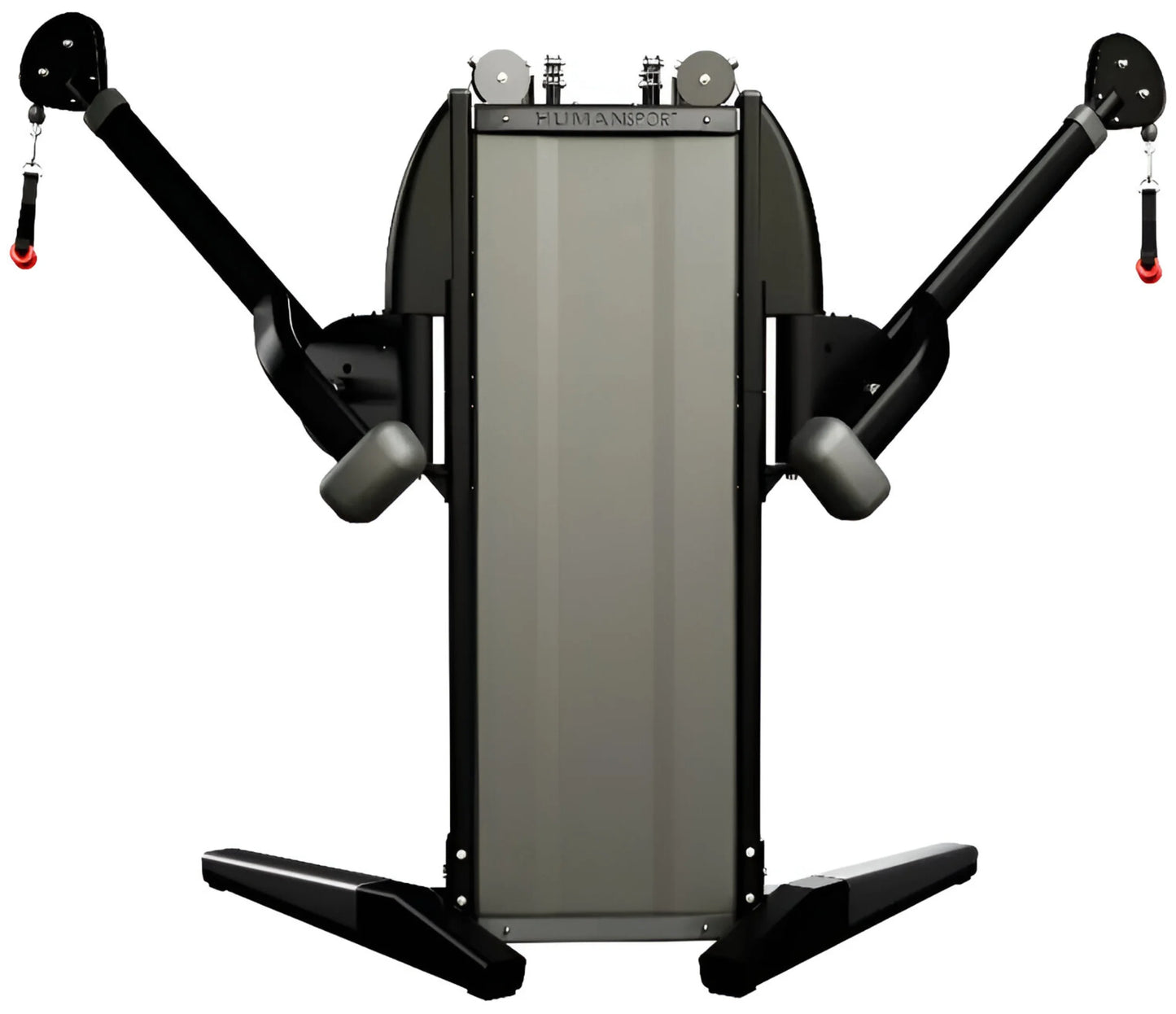

• Flat back tower to be positioned against a wall, pillar, matching machines, or others in your functional training area(s)
• Simple cable replacement procedures
• Standard roller bearings replace plastic bushings for smoother rotation
• Fits through a standard door frame for ease of install and transport
• Open top design to visually inspect cables without having to remove shrouds
• 3 floor bolt locations
• Stainless steel wear plates

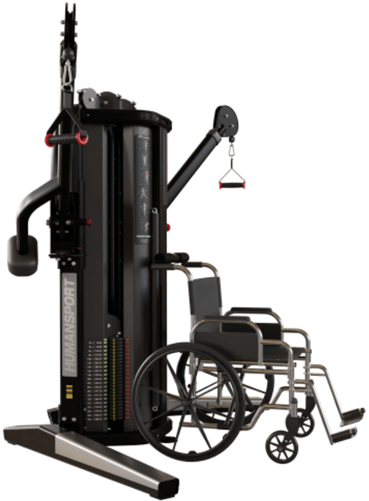

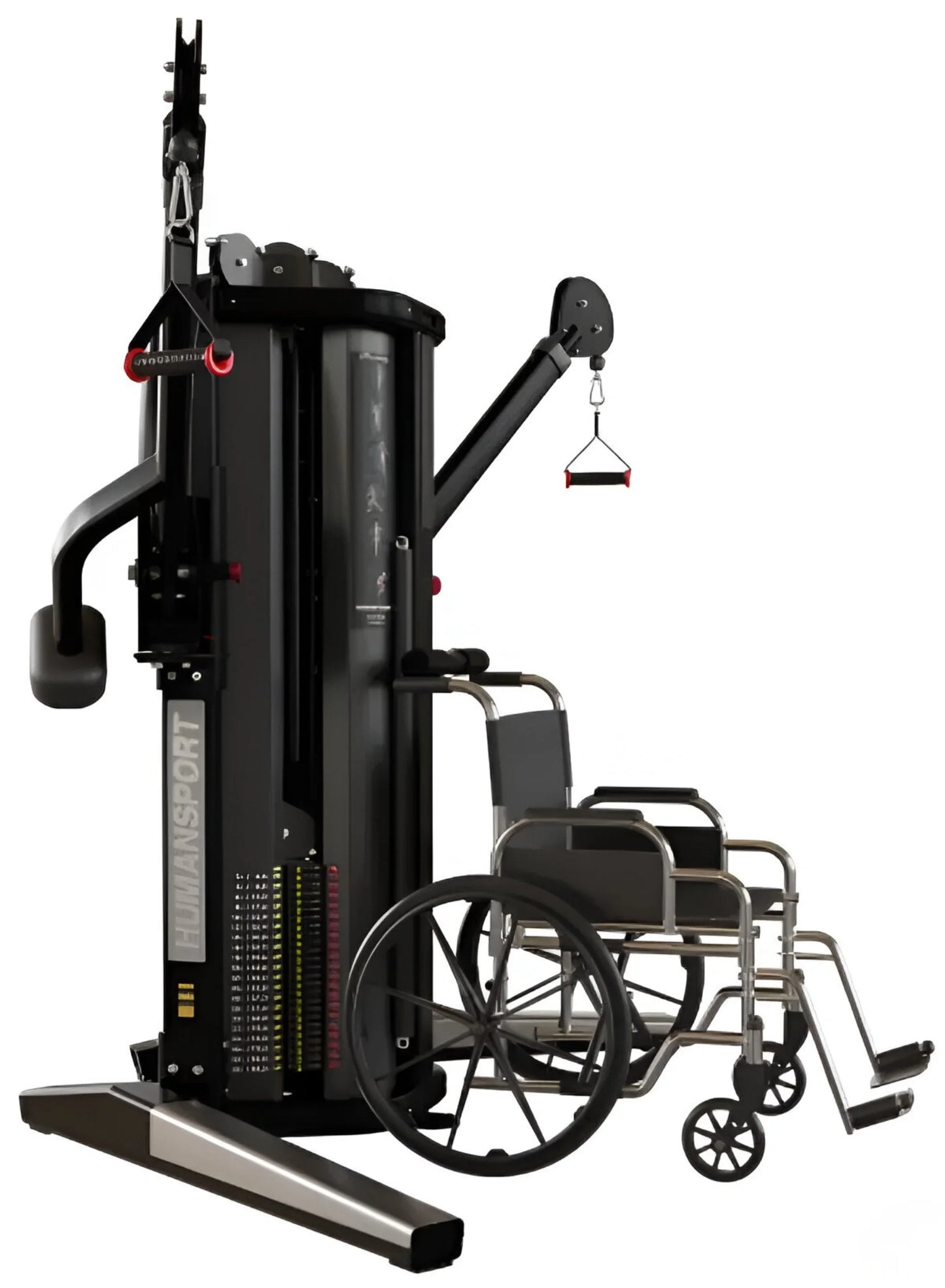

Wheelchair Accessibility:

• 3:1 cable ratio for low starting resistance
• Weight stack utilizes Lock N Load switch technology for quick and easy weight selection even while seated
• Easily adjustable, counter balanced pivot handles, even while in the seated position
• Open design allowing for wheelchair access

ADJUSTMENTS & MOVEMENTS

• User Defined Range Of Motion: Yes, cable-based training utilizing multiple planes of motion. Nine horizontal position options and 12 vertical position adjustment options
• Assisted Adjustments: Yes, counter balanced on vertical adjustment arm ends
• Color Coded Pivot Points And Adjustments: Yes, including visual indicators when pull pin is disengaged
• Unilateral Or Bilateral Movement: Yes, independent arms use for user defined path of motion by incorporating independent weight stacks and swivel pulleys
• Converging Or Diverging Movements: Yes, user defined
• Pulley Ratio: 3:1 ratio with 9.5 ft (289.5 cm) training space and 113 in (287 cm) cable travel

FRAME SPECIFICATIONS & CABLE INFORMATION

• Standard Frame Color Options: Silver with wood trim, Silver with carbon fiber trim, Black with carbon fiber trim, Black with wood trim
• Standard Upholstery Color Options: N/A
• Frame Finish: Electrostatic Powder coating
• Customizable Paint Options Available: Yes with additional fees and extended lead times
• Customizable Upholstery Options Available: N/A
• Customizable Branding Options Available: Yes with additional fees and extended lead times
• Cable Vs. Belt Driven Transmission: 4mm cable driven
• Bolt Down Locations Defined: Yes, 3 defined bolt down locations located on weight stack tower
• Integrated Leveling System: No, rubber feet for floor protection
• Hardware Type: Hex / Button Head
• Tubbing Style & Thickness: Modern blend of square and round tubing. Most are 3 or 2.5 mm / 11 ga

USER SPECIFIC INFORMATION

• Static Placards: 12 pre-defined exercises with static placards with start and finish diagrams
• Multi-Language Placards Options Available: Yes
• Animated Lenticular: No
• Safety Catch & Stops: N/A
• Water Bottle Holder: No
• Phone Holder: No
• Grip Specifications: Oversized, rubber grips on stabilization handles which provide ideal positioning for hip, knee and ankle exercises
• Foot Platform: N/A
• Contoured Pads: N/A
• Restraint System: N/A
