Stairmaster 10 Series 10G Gauntlet w/LCD 9-5295-10G-LCD - Black (New)
Stairmaster 10 Series 10G Gauntlet w/LCD 9-5295-10G-LCD - Black (New)
Description
THE HARDEST WORKOUT IN THE GYM JUST GOT HARDER.
Introducing the new StairMaster 10G with 16" OpenHub display, now powered by Android OS. The StairMaster 10G marks a revolutionary shift in stair-climbing technology. The innovative new design features the OverDrive Training Mode that simulates carrying or pushing a load up stairs, for the most intense climbing workout. The 10G's advancements all focus on delivering the best climbing experience ever created. User-focused features include the widest and deepest stepping surface and lowest step-up height in the industry, ergonomic handrails to support multiple climbing positions and an all new drive train that delivers smooth, quiet performance.
The Nuts and Bolts - A quick explanation as to why our drivesystem works: The 10G, 8Gx and 4G all share the same mechanical design, championed by a generator based drivesystem vs Alternator. As a user climbs stairs, the generator creates resistance; this resistance prevents the steps from 'free-falling' - this is why the creation of resistance is important. Because the generator-based drivesystem is lightly geared (has a low gear ratio), the generator does not have to spin at a high rate to generate resistance. This is important because it means lighter-weight users won't have an issue generating resistance. In contrast, previous designs (pre-2019) utilized an alternator which requires a high gear ratio (needs to spin fast in order to generate resistance), higher gear ratios mean more friction in the system and thus needs more downward force to move. More friction is also prone to other issues.
IMPORTANT: Ceiling Height Requirements: Generally, the user will be up to 33" to 36" taller than their actual height on revolving staircase / stepmill units. 8' ceilings (standard in homes) will rarely work. Please contact us if you have questions as to whether this will fit in your setting. We will need your exact ceiling height and the height of the tallest user.
Choose between LCD & 16” Embedded Display versions of the new OpenHub family of consoles:
 |
 |
| StairMaster 10 Series 10G w/LCD | StairMaster 10 Series 10G w/16" Embedded Display |
Extra info
Manuals
Photos
Instructional video
Other Videos
Features
- Brand: Stairmaster
Overdrive Training Mode
The new OverDrive Training Mode simulates carrying or pushing a load up stairs. Users choose either manual control or one of several pre-programmed interval workouts to create the toughest workout ever delivered on the cardio floor. The 10G handrails provide three hand positions for pushing, as well as farmer's carry handles.

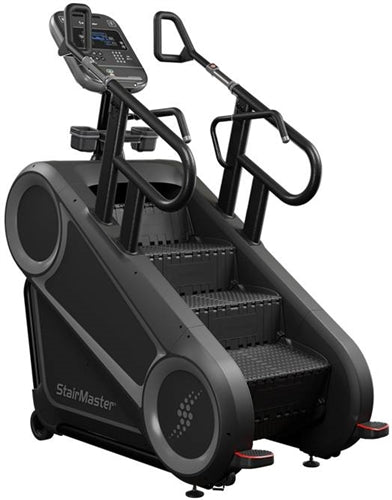

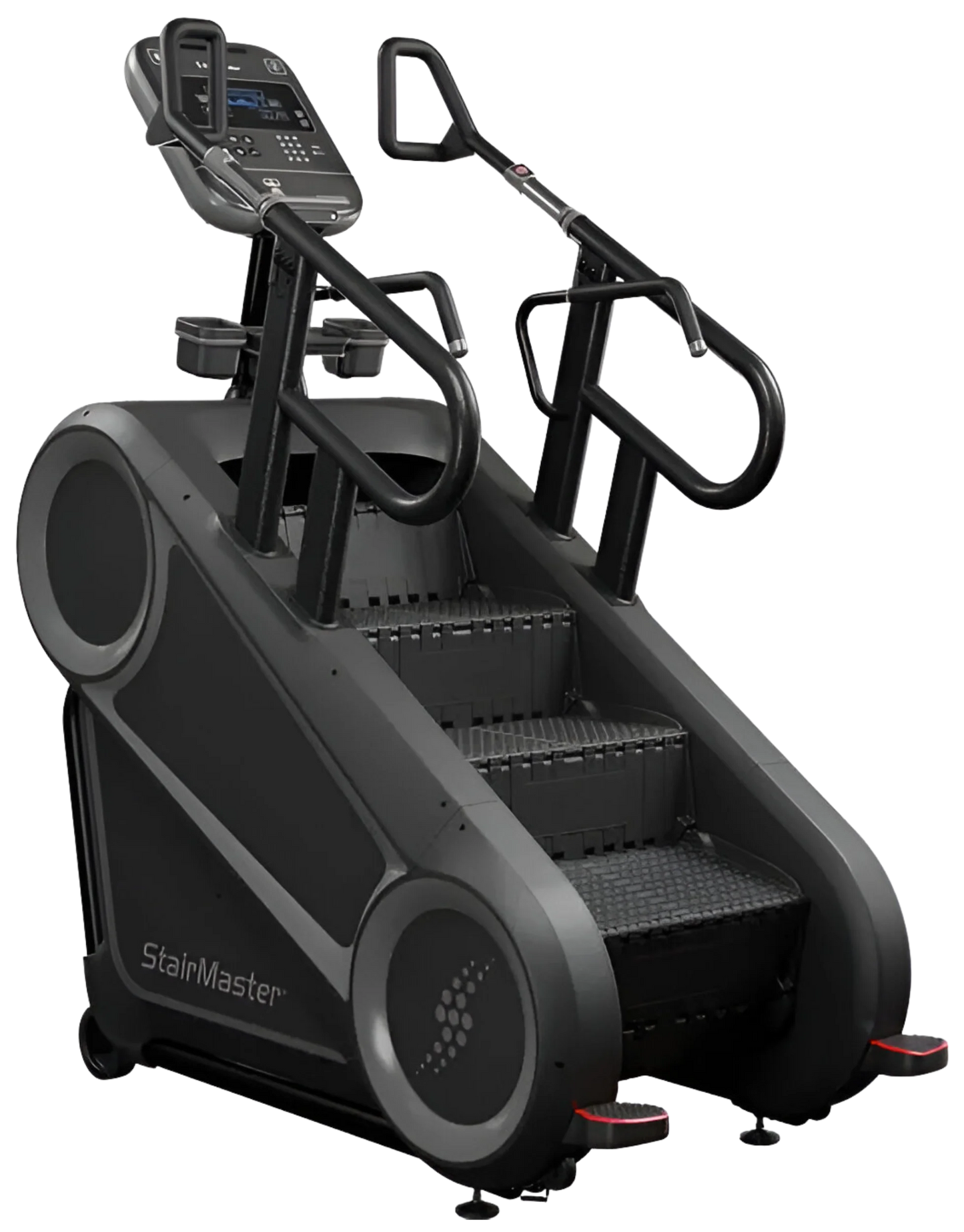

Product Design Features
The widest and deepest step in the industry and lowest step up height. Redesigned handrail system supports a variety of workout positions including push/carry in new OverDrive Training Mode and optimal entry/exit. Service panel removes with 4 fasteners, allowing easy access to drive train and electronics.- Includes the new OverDrive Training Mode that simulates performing a Sled Push and Farmer's Carry up stairs for the most intense cardio workout
- Includes the Landmark Challenge Program as well as standard console programs
- The Landmark Challenge program allows users to climb well-known landmarks from around the world like the Eiffel Tower, the Statue of Liberty and the Taj Mahal
- Standard console programs are also included
- Electronically controlled generator, brake and drive chain precisely control the stair speed, allowing a wide range of users to exercise smoothly within their comfort zones
- Hand rail mounted stop button, level controls and contact heart rate
- Revolving staircase with eight steps, 8" (20 cm) high, 12" (30 cm) deep and 22" (56 cm) wide
- Step Up Height: 9"
- Step rate: 25 Levels, ranging from 24-190 steps per minute
- 16" display allows adjustment of step rate in single SPM increments
- Bluetooth connectivity for user workout data tracking (16" display includes BLE headphones and HR connectivity)
- Telemetry and contact HR
- USB charging port
- HDMI streaming from personal device available with PVS and 16" display
- Multiple bottle and accessory holders
- Personal cooling fans create a more rewarding workout
- LCD, 800/900mHZ receivers, and tablet holder
- Electrical requirements: 12V/5 Amp power supply
- Powder-coated Steel frame
BASE FEATURES
- Step Surface: 12" (30 cm) Deep x 22" (56cm) Width
- Step Height: 8" (20cm)
- Step Rate: 25 Levels ranging from 24-190 steps per minute
- Step Up Height: 9" (23cm)
- Heart Rate Measurement System: Telemetry and contact HR (Bluetooth with embedded display)
- Controls: Easily accessible Hot Bar® is located closer to the user with one-finger speed and elevation controls, integrated stop button and contact heart rate grips
- Accessories: Multiple bottle and accessory holders, LCD display pre-wired for 8 Series PVS entertainment, 800/900MHz receivers, and tablet holder
- Drive System: Generator
- Electrical Requirements: 12V/5 Amp power supply
- Additional Features: OverDrive Programs simulate sled push and farmer's carry while climbing stairs; Landmark Challenge
FRAME
- Material: Powder Coated Steel Frame
- Customizable: Yes, paint color approval required
- Standard Color Options: Matte Black (-60 black)

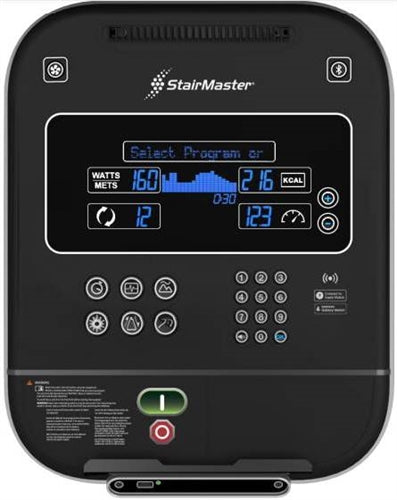

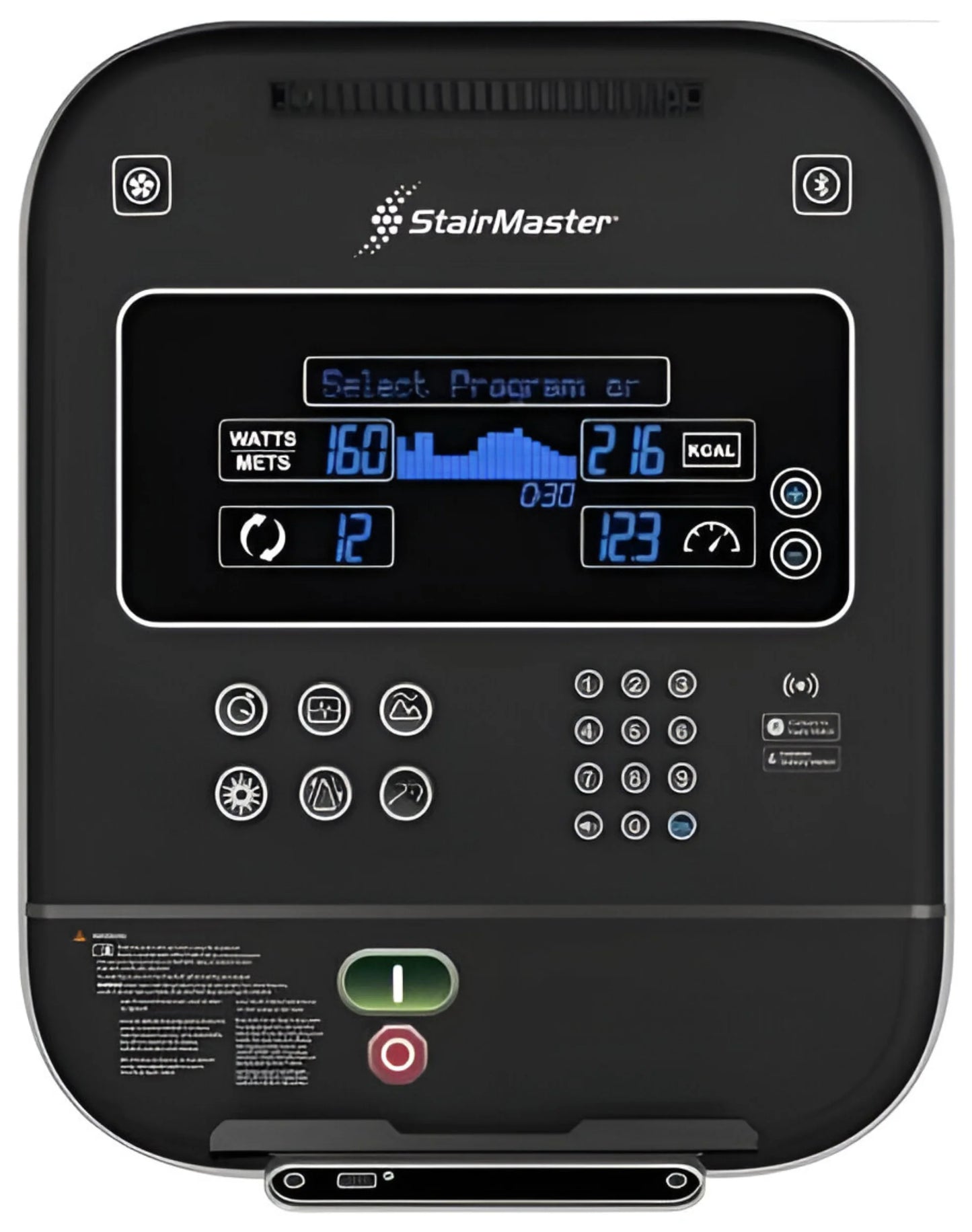

CONSOLE
- Display: LCD
- Display Type: Static LCD
- Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Katakana, Russian, Finnish
- Pre-Programmable Work Outs: Yes, 14+
- Quick Start Options: Yes, single button start options
- TV Tuner Enabled: No
- Ethernet and Wifi Enabled: No
- Bluetooth Data Tracking/App Connectivity: Yes
- Bluetooth Headphones: No
- Bluetooth Heart Rate: No
- Apple Gymkit/Samsung Galaxy Watch Connectivity: Yes
- OTA (Over the Air) Capabilities: No
- RunTV Integrated Workout Videos: No
- Egym Compatible: No
- Integrated Web-Based Apps; No
- Customizable Home Screen: No
- HDMI Streaming: Yes, HDMI streaming available with PVS option; cables not included
- USB: USB port for software updates and device charging; cables not included
- RFID: No
- IPTV/SET Top Box Compatible: Yes, with PVS addition
- ANT+ For Group Display: Yes
- Personal Fan: Yes, programmable auto start
- Asset Management: Ecofit Optional
- Tablet Holder: Integrated front Option for additional add-on accessory
- PVS: Optional add-on
- 800/900 MHZ Receiver: Optional add-on
- Android OS: No
