BASE FEATURES

• Deck System: Two piece aluminum deck with phenolic sheet
• Absorption System: HexDeck aluminum deck supported by proprietary hexagonal suspension system provides a revolutionary combination of shock absorption + response
• Heart Rate Measurement System: Telemetry and contact HR, Bluetooth w/ 20” display option
• Center Controls Bar: Easily accessible Hot Bar®, incline and speed is located closer to the user with one-finger speed and elevation controls, integrated stop button and contact heart rate grips
• Display: Choose between 20” Embedded Display & LCD versions OpenHub display options
• User Detect System: Yes, programmable on/off
• Accessories: Multiple bottle and accessory holders, LCD and display pre-wired for PVS entertainment, 800/900MHz receivers, and tablet holder
• Electrical Requirements: 110V/20 Amp dedicated circuit with NEMA 5-20 outlet; or 220V/15 Amp dedicated circuit with NEMA 6-15 outlet
• Additional Features: 3.5" rollers

FRAME

• Material: Powder Coated Steel Frame
• Customizable: Yes, paint color approval required
• Standard Color Options: Quantum Silver

CONSOLE

• Display: LCD
• Display Type: Static LCD
• Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Katakana, Russian, Finnish
• Pre-Programmable Work Outs: Yes, 14+
• Quick Start Options: Yes, single button start options
• TV Tuner Enabled: No
• Ethernet and Wifi Enabled: No
• Bluetooth Data Tracking/App Connectivity: Yes
• Bluetooth Headphones: No
• Bluetooth Heart Rate: No
• Apple Gymkit/Samsung Galaxy Watch Connectivity: Yes
• OTA (Over the Air) Capabilities: No
• Runtv Integrated Workout Videos: No
• Egym Compatible: No
• Integrated Web-Based Apps: No
• Customizable Home Screen: No
• HDMI Streaming: Yes, HDMI streaming available with PVS option; cables not included
• USB: USB port for software updates and device charging; cables not included
• RFID: No
• IPTV: Yes, with PVS addition
• Set Top Box Compatible: Yes, with PVS addition
• ANT+ For Group Display: Yes
• Personal Fan: Yes, programmable auto start
• Asset Management: Ecofit Optional
• Tablet Holder: Integrated front. Option for additional add-on accessory.
• PVS: Optional add-on
• 800/900 Mhz Receiver: Optional add-on
• Android OS: No

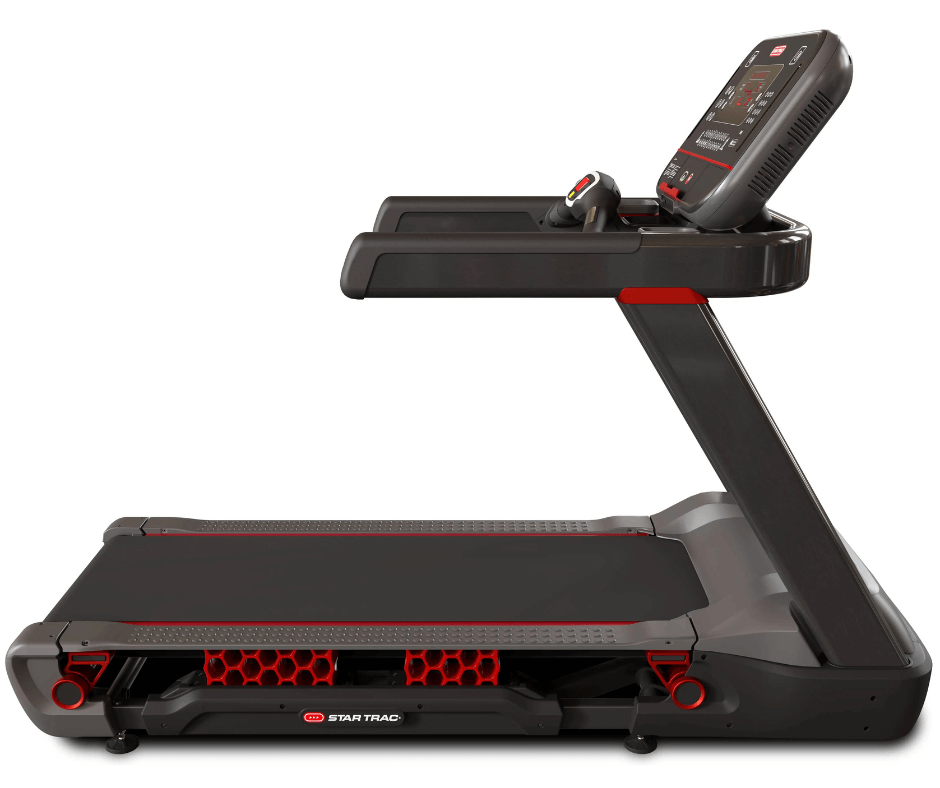

Hexdeck Technology

Our HexDeck System features an aluminum deck supported by a proprietary, hexagonal polymer suspension system. The deck dissipates heat, keeping a cooler surface for the belt and reducing wear. The deck panel will last many times longer than MDF - only a thin phenolic layer needs replaced when worn, significantly reducing the labor and material long-term cost of ownership.

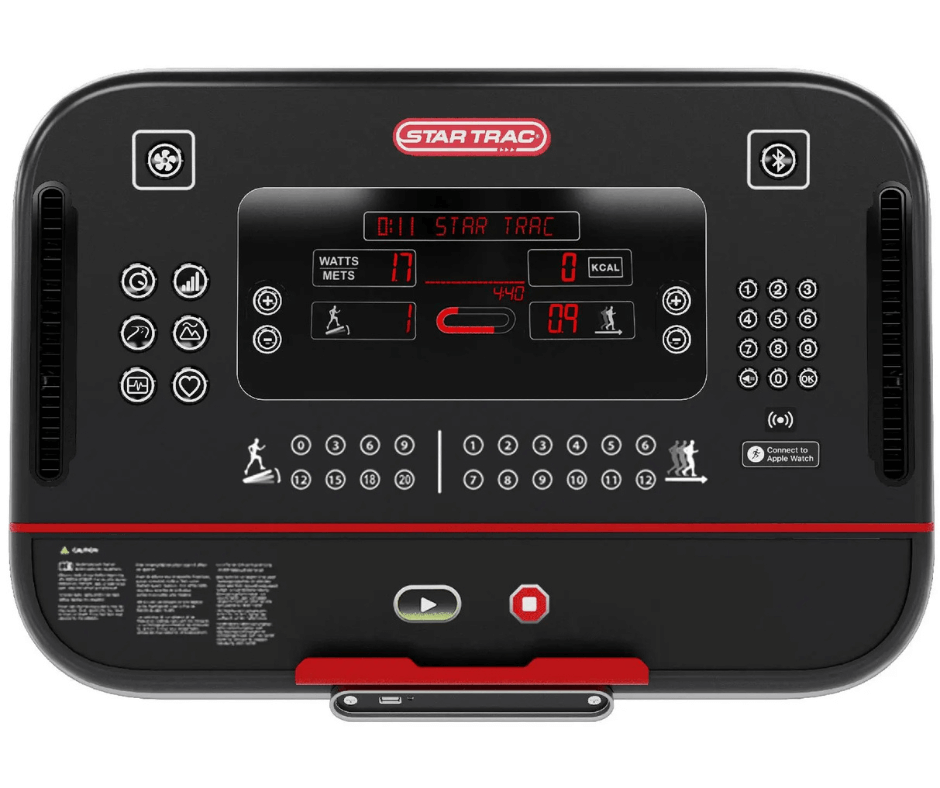

Star Trac LCD Console with Quick Key Selection

The LCD display provides all the functionality you need in a sleek, modern package. With standard features like Bluetooth connectivity, VA glass and USB charging, this is the LCD screen that is anything but standard.

Our affordable, flexible, innovative OpenHub consoles are available on every piece of 8 and 10 Series Star Trac and StairMaster cardio equipment. They offer best in class entertainment, fitness tracking and asset management solutions. With the ability to select just the features you want, and add new features in the future, this open platform offers you the ability to have exactly what you want, when you want it.

Connect to Apple Watch or Samsung Galaxy Watch

OpenHub™ LCD Consoles and 16"/20" Embedded Displays are able to connect directly with Apple Watch or Galaxy Watch for real-time data sharing between the equipment and watch using NFC technology to allow a simple tap to pair connection.

Advagym by Sony Compatible

Reach your full potential with Sony Advagym. Learn More ™
