Description

The 4 Series cardio line from Star Trac is the perfect solution for the hospitality and multi-housing markets. With premium display options, quick select adjustment keys and optional personal viewing screen, the 4 Series provides smaller facilities with the look and performance of a full commercial product.

Choose between 4 Series 15" Embedded, 10" Touchscreen & 10" LCD versions of the new OpenHub family of consoles

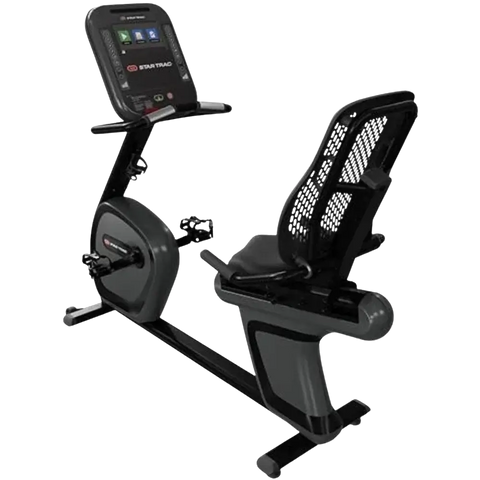

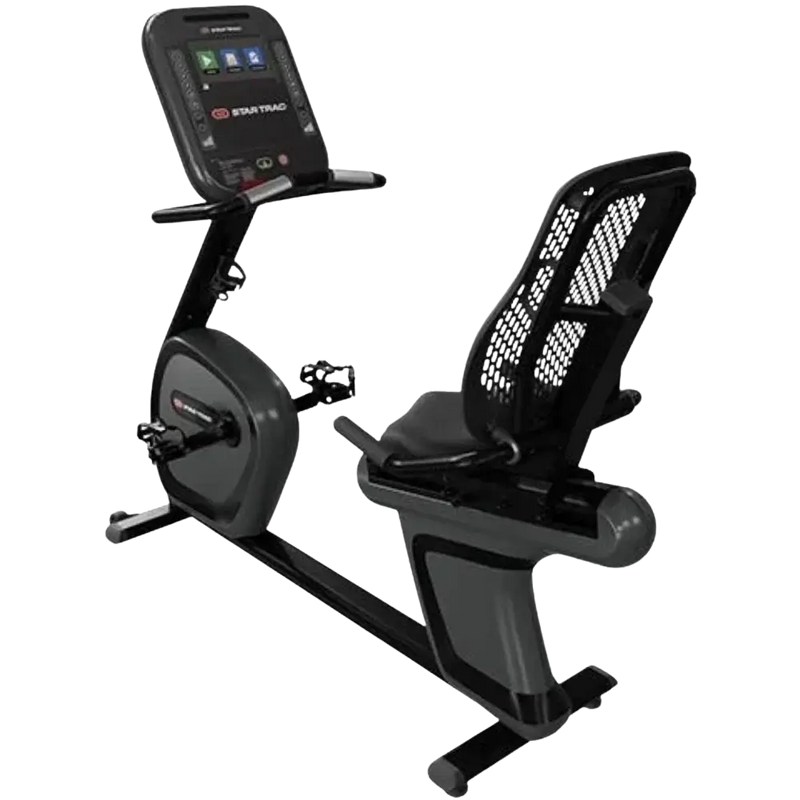

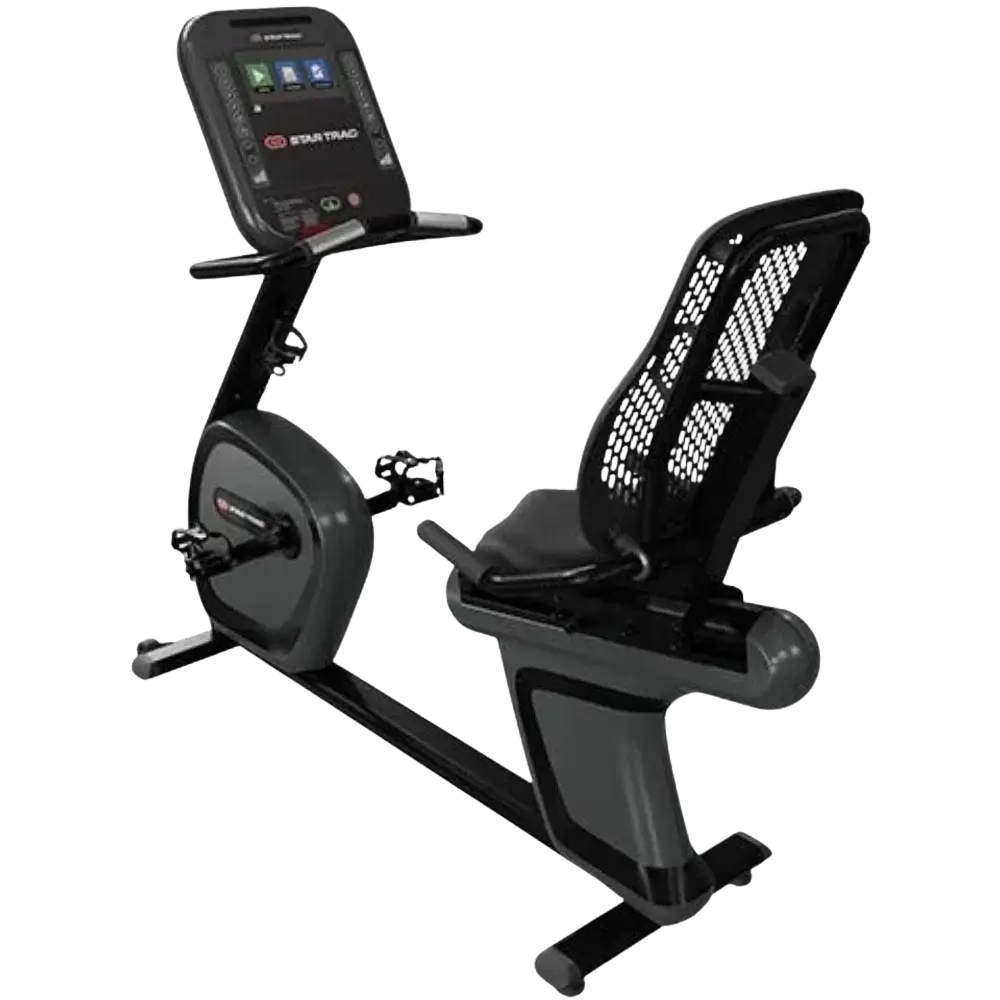

Star Trac 4 Series Recumbent Bike w/15" Embedded Display - Black	Star Trac 4 Series Recumbent Bike w/10" Touch Display - Black	Star Trac 4 Series Recumbent Bike w/10" LCD - Black

Click to view Star Trac 4RB Recumbent Bike Product Product Sheet

Features

BASE FEATURES

• Heart Rate Measurement System: Telemetry and contact HR
• Controls: Console- quick key select
• Bottom Bracket: ISIS
• Pedals: Commercial-grade pedals with adjustable straps provide ease of set-up and durable performance
• Seat Adjustment: Wrap around adjustment bar for ease of use
• Display: Choose from Full Color 10" LCD, 10" Capacitive Touchscreen or 15" OpenHub Touchscreen
• Accessories: Bottle holder, pre-wired for PVS entertainment
• Drive System: Alternator
• Electrical Requirements: LCD is self-generating; touch screen and PVS options require 12V/5 Amp power supply
• Start Up Watts: 20
• Additional Features: Walk-thru design, USB port

FRAME

• Material: Powder Coated Steel Frame
• Customizable: Paint color options approval required
• Standard Color Options: 60 Black

CONSOLE

• Display: 4 Series 10" Touchscreen
• Display Type: Capacitive Touchscreen
• Multi-Language Options: English, German, Spanish, Dutch, Portuguese, French, Italian, Swedish, Russian, Chinese, Japanese, Polish
• Pre-Programmable Work Outs: Yes, 20+
• Quick Start Options: Yes, single button start options
• TV Tuner Enabled: No
• Ethernet And Wifi Enabled: No
• Bluetooth Data Tracking/App Connectivity: No
• Bluetooth Headphones: No
• Bluetooth Heart Rate: No
• Apple Gymkit/Samsung Galaxy Watch Connectivity: No
• RUNTV Integrated Workout Videos: No
• Integrated Web-Based Apps: No
• Customizable Home Screen: No
• HDMI Streaming: No
• USB: USB port for software updates and device charging; cables not included
• RFID: No
• IPTV/Set Top Box Compatible: No
• ANT+ For Group Display: No
• Personal Fan: Yes, programmable auto start
• Asset Management: Ecofit Optional
• Tablet Holder: Integrated front
• PVS: No
• 800/900 MHZ Receiver: No

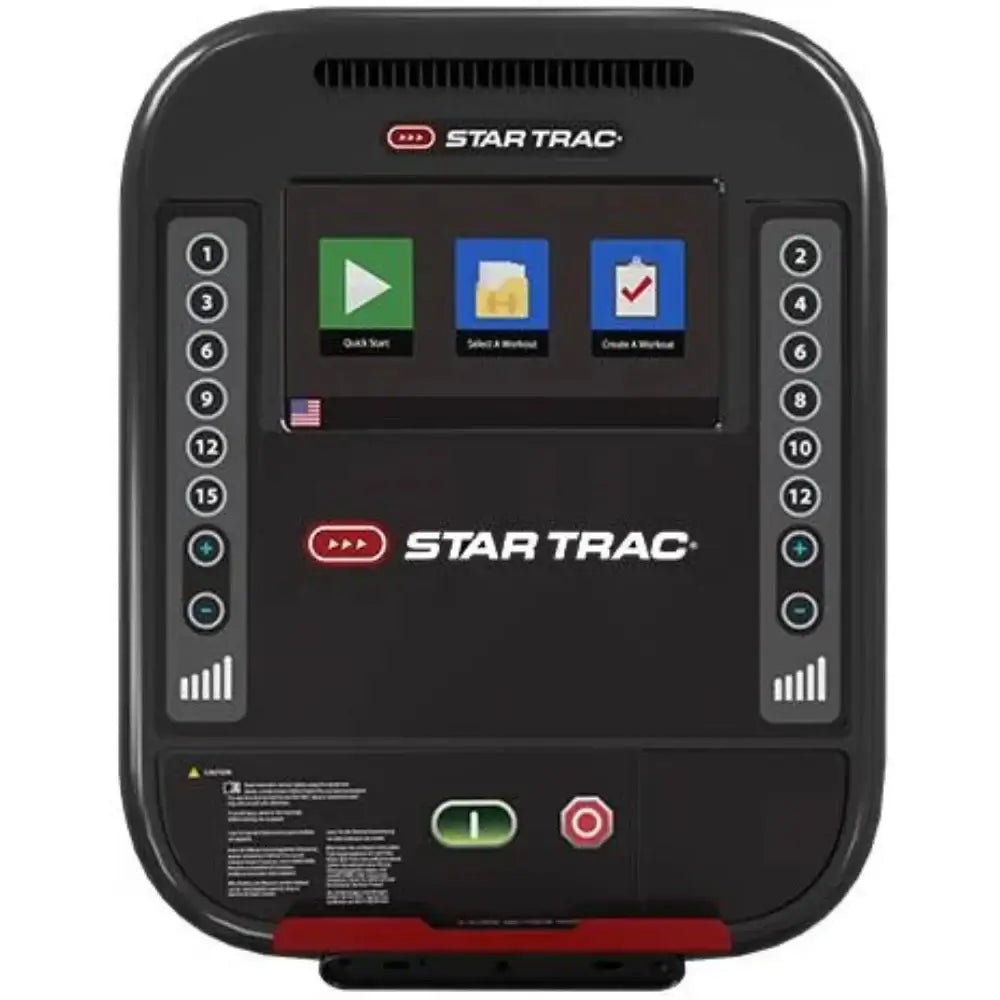

Star Trac 4 Series 10" Touchscreen Cardio Console

The 10" touchscreen display adds a premium look and experience to the Star Trac line. For the facility that is looking for the premium look and feel of a touchscreen console, but doesn't want to pay for embedded TV, media streaming and other add-on features, the 10" is a great option.

• USB charging port
• Multiple program options
• Treadmill includes Quick Keys for one-touch selection of preset speed and elevation settings on the fly
• Pre-wired for ECOFIT asset management solution
• Pre-wired for PVS entertainment option

Tech Specs

• Dimensions: 68"L x 23"W x 54"H (L:172cm, W:59cm, H:137cm)
• Max User Weight: 450lb (204kg)
• Product Weight: 186lbs (84kg)
• Shipping Dimensions: 67"L x 23"W x 31"H (L:170cm, W:58cm, H:80cm)
• Shipping Weight: 208lbs (94kg)
• Product SKU: 9-3190-4RB-10-TS-60BLK

Warranty & Compliance

• California Residents see Prop 65 WARNING

• COMMERCIAL (Facilities that charge dues and/or > 8 hours/day usage)
  - Not intended for commercial use.

  LIGHT COMMERCIAL/VERTICAL (Non-dues paying facility and < 8 hours/day usage)
  - Limited 10 year warranty on structural frame not including coatings, all other components warranted for 5 years parts and 2 years labor.

  CONSUMER (Home setting, equipment used by home occupants only.)
  - Limited 10 year warranty on structural frame not including coatings, motor & MCB 5 years parts and labor, all other components warranted for 10 years parts and 3 years labor.
